Seal Supply Systems

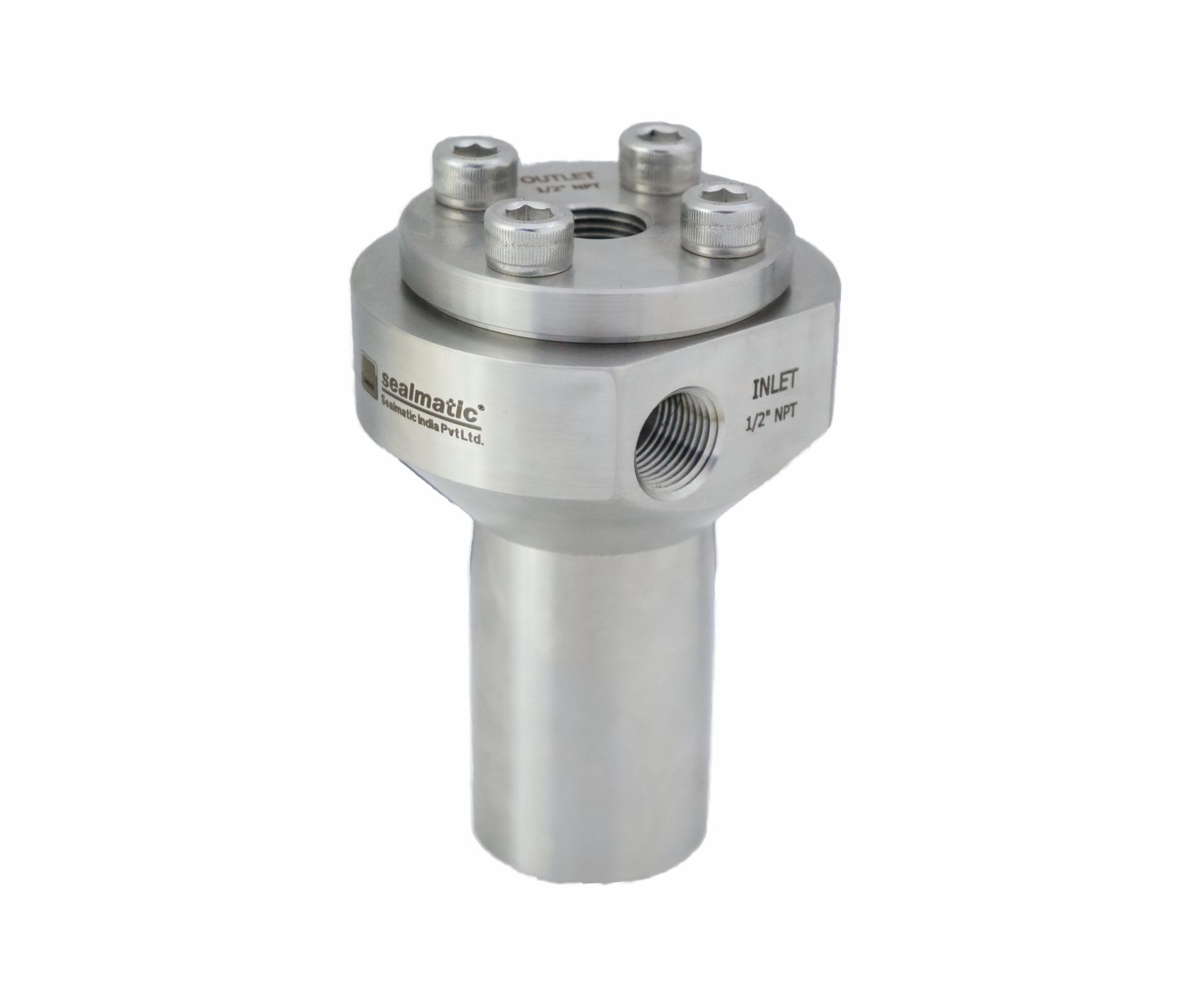

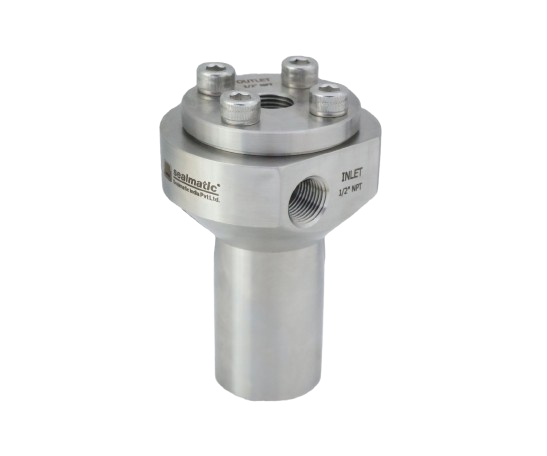

Product Description

  • Circulation in accordance with API 682 / ISO
    21049: Plan 31, Plan 41
  • The CS range is available in three basic
    versions i.e. cyclone separator with
    replaceable insert made of elastomer or
    ceramic or cast version of the cyclone
    separator or cyclone separator for high flow
    rates and high pressures.

Details

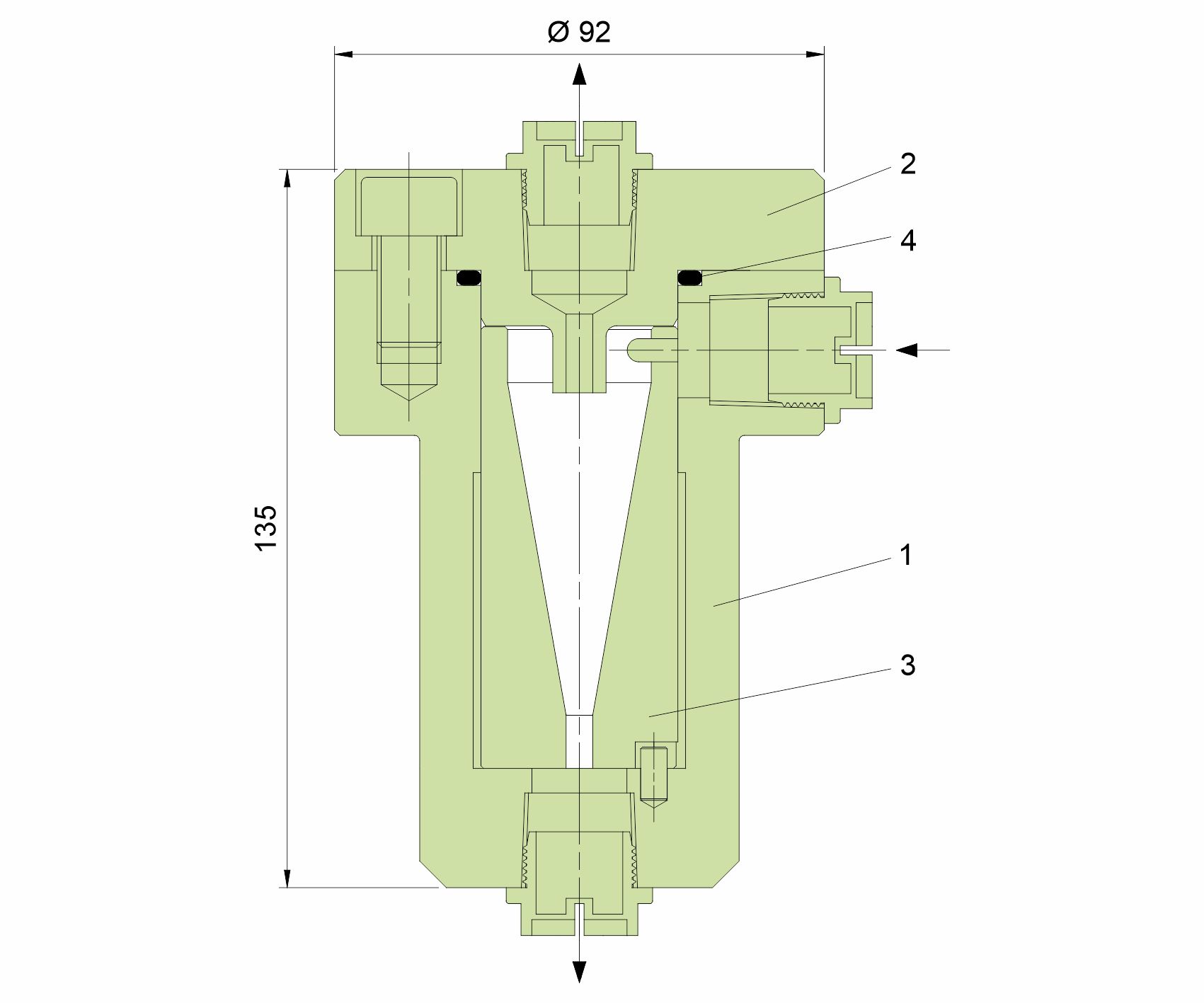

Item No. Description
1 Housing
2 Cover
3 Insert
4 O-Ring

Technical Features

  • Available for operating pressures of up
    to 200 bar
  • Dirt is automatically conveyed to the suction
    nozzle of the pump: maintenance-free mode of
    operation for guaranteed reliability
  • High filtration efficiency
  • Optional in block-type design with integrated
    flange connections: low space requirements
    because of compact design.
  • Wide range of products for the optimum
    solution for every application.

Operating and Installation Schematic

The cyclone separator must always be installed in the vertical position. The pressure at the outlets (C) and (B) must be lower than at the inlet (A). Cleaned liquid is conveyed to the top (B) and the separated dirt to the suction port of the pump.

Typical Industrial Applications

  • Chemical industry
  • Oil and gas industry
  • Petrochemical industry
  • Refining technology
  • Water and waste water technology

Functional Description

Cyclone separators of the CS range are used to clean mainly aqueous liquids containing dirt and solids (e.g. in circulation systems of sewage, sludge or pipeline pumps). The best possible filtration efficiency is achieved when the specific weight of the solids is much higher than that of the carrier liquid, and when the differential pressure is as large as possible within the permissible pressure range (min. 1.7 bar in accordance with API 682). The viscosity of the medium is also a factor that needs to be taken into account.
