Seal Supply Systems

Product Description

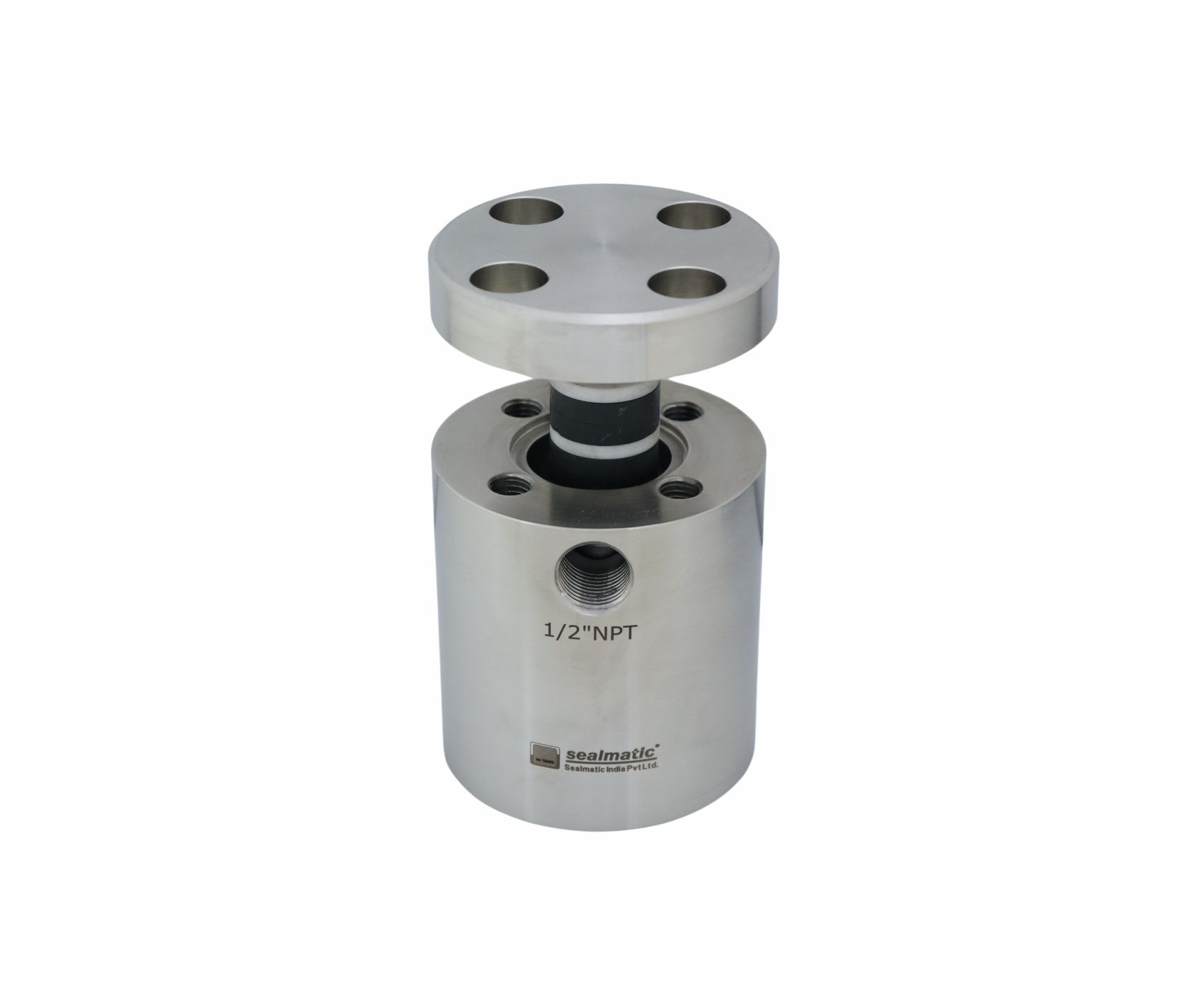

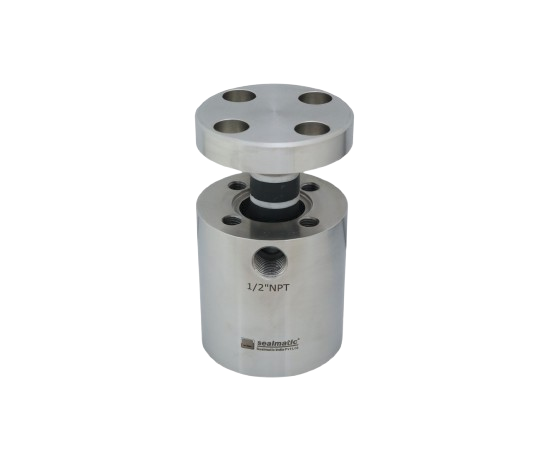

Magnetic separators of the MS range consist of a pressure casing with integrated magnetic rod. Magnetic separators are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic impurities.

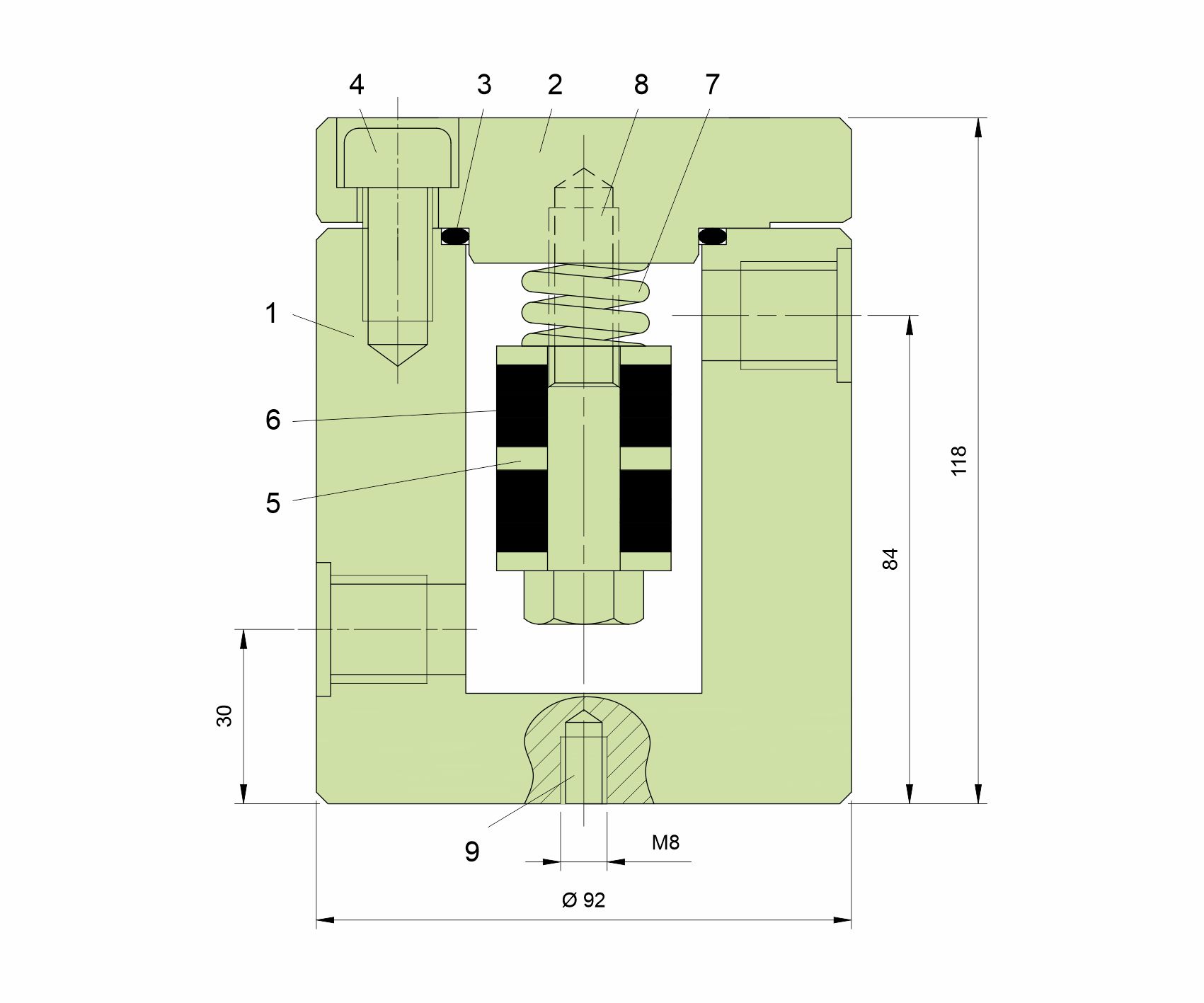

Item No. Description
1,2 Casing and cover: SS 316
3 O-Ring: E
4,8 8 Screws: A4 – 70 stainless steel
5 Washers: T2
6 Ring magnets:
7 Spring: 1.4301
8 Fixing hole

Technical Features

  • For operating pressures of up to 150 bar
  • Housing can be dismantled:
    simple maintenance and cleaning
  • Reliable and rugged technology

Typical Industrial Applications

  • Chemical industry
  • Oil and gas industry
  • Petrochemical industry
  • Power plant technology
  • Refining technology

Functional Description

The magnetic rod is positioned in the casing in such a way
that it catches magnetic particles flowing past in the
medium on all sides.

Operating and Installation Schematic

The magnetic rod can be removed for cleaning with the casing fitted by opening the cover (with the line

Maintenance intervals depend on the degree of soiling. We recommend checking and if necessary cleaning the magnetic rod several hours after using for the first time and each time after flushing the pipes because experience indicates that much of the dirt is flushed out of the pipes at this time.
