UG943

Mechanical Seals for Pumps

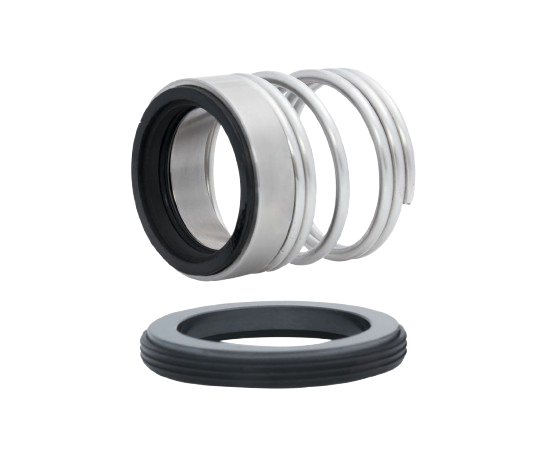

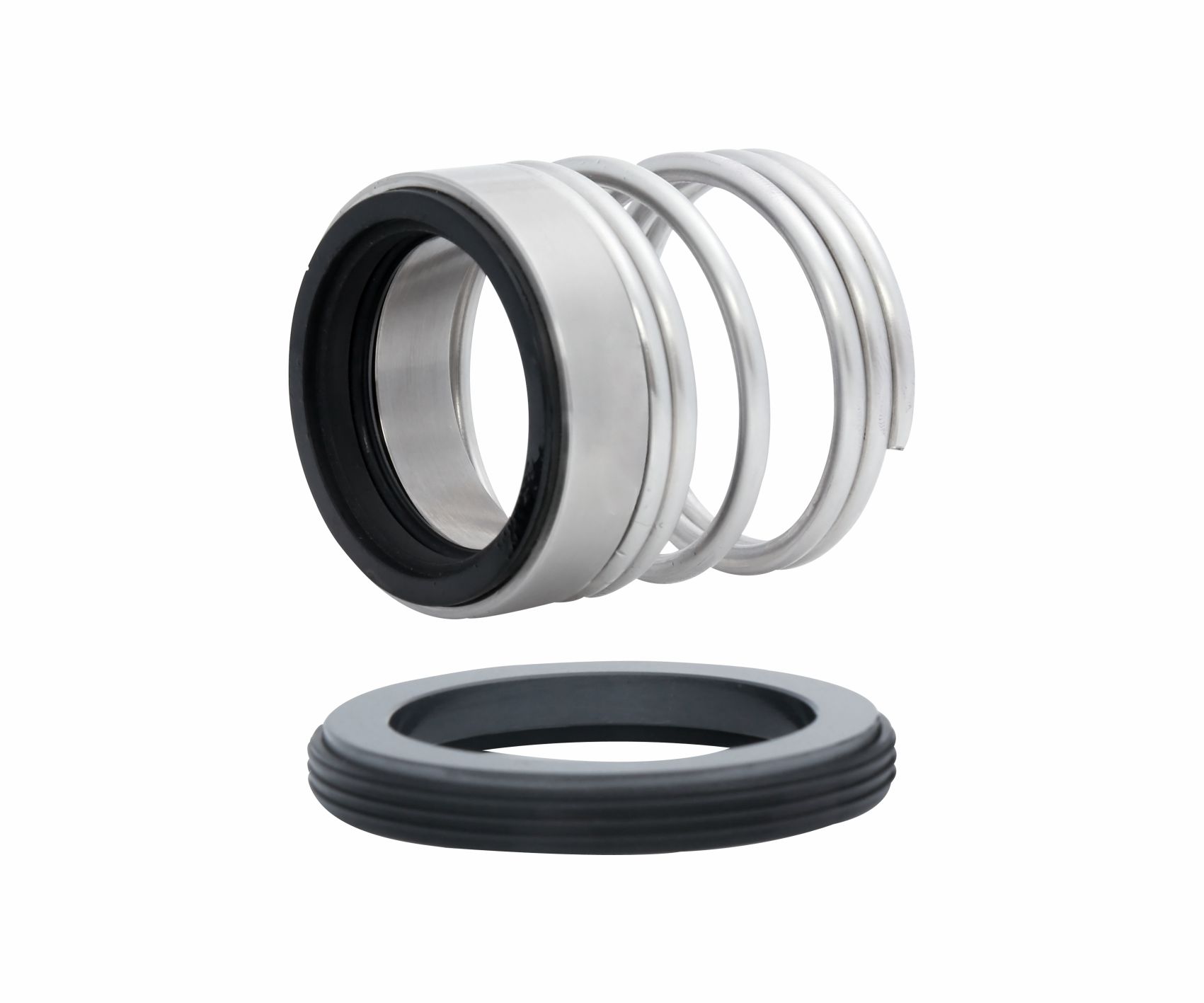

Product Description

  • Conical or cylindrical spring
  • Elastomer bellows rotating
  • For plain shafts
  • Independent of direction of rotation
  • Metric and inch sizes available
  • No torsion on bellows and spring
  • Single and dual seal
  • Special seat dimensions available
  • Unbalanced

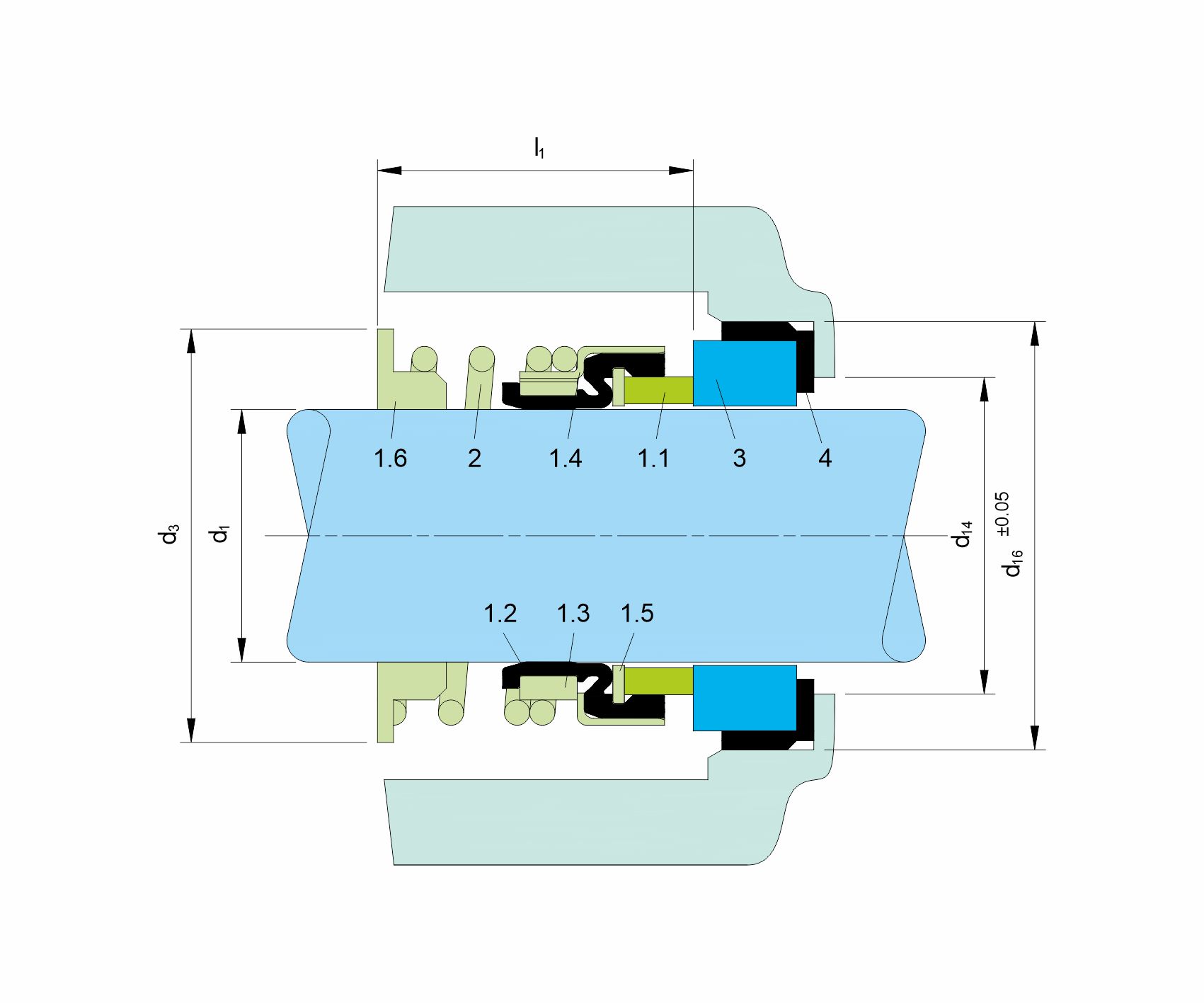

Details

Item Description
1.1 Seal Face
1.2 Bellows
1.3 Driver collar
1.4 “L” ring (spring collar)
1.5 Washer
1.6 Corner Ring
2 Spring
3 Seat
4 O-Ring

Technical Features

  • Fits into any installation space due to smallest outer seal diameter
  • High flexibility due to extended selection of materials
  • Important material approvals available
  • Individual installation length can be achieved
  • Universal application (standardization)

Typical Industrial Applications

  • Food and beverage industry
  • Multi-stage pumps (non-drive side)
  • Media with low solids content
  • Pressure oils for bio diesel fuels
  • Water and waste water technology
  • Water and waste water pumps
  • Cooling fluids
  • Circulating pumps
  • Oil applications
  • Chemical industry
  • Submersible pumps

Standards

EN 12756
FDA

Materials

Seal face: Carbon graphite antimony impregnated (A),
Carbon graphite resin impregnated (B),
Silicon carbide (Q1)
Seat: Silicon carbide (Q1 , Q2),
Aluminium oxide (V)
Elastomer: NBR (P), EPDM (E), FKM (V),
HNBR (X4)
Metal parts: CrNiMo steel (G)

Performance Capabilities

Shaft diameter: d1 = 10 ... 100 mm (0.375" ... 4")
Pressure: p1 = 12 bar (174 PSI),
vacuum up to 0.5 bar (7.25 PSI), up to 1 bar (14.5 PSI)
with seat locking
Temperature: t = -20 °C ... +140 °C (-4 °F ... +284 °F)
Sliding velocity: V g = 10 m/s (33 ft/s)
Axial movement: ± 0.5 mm

Notes

A modular principle comprising a bellows unit for each shaft diameter and a corresponding cylindrical spring for individual length compensation to l 1 installation length. The UG943 can also be used as a multiple seal in tandem or in a back-to-back arrangement. The entire UG943 series is available in metric and inch sizes
