UTX

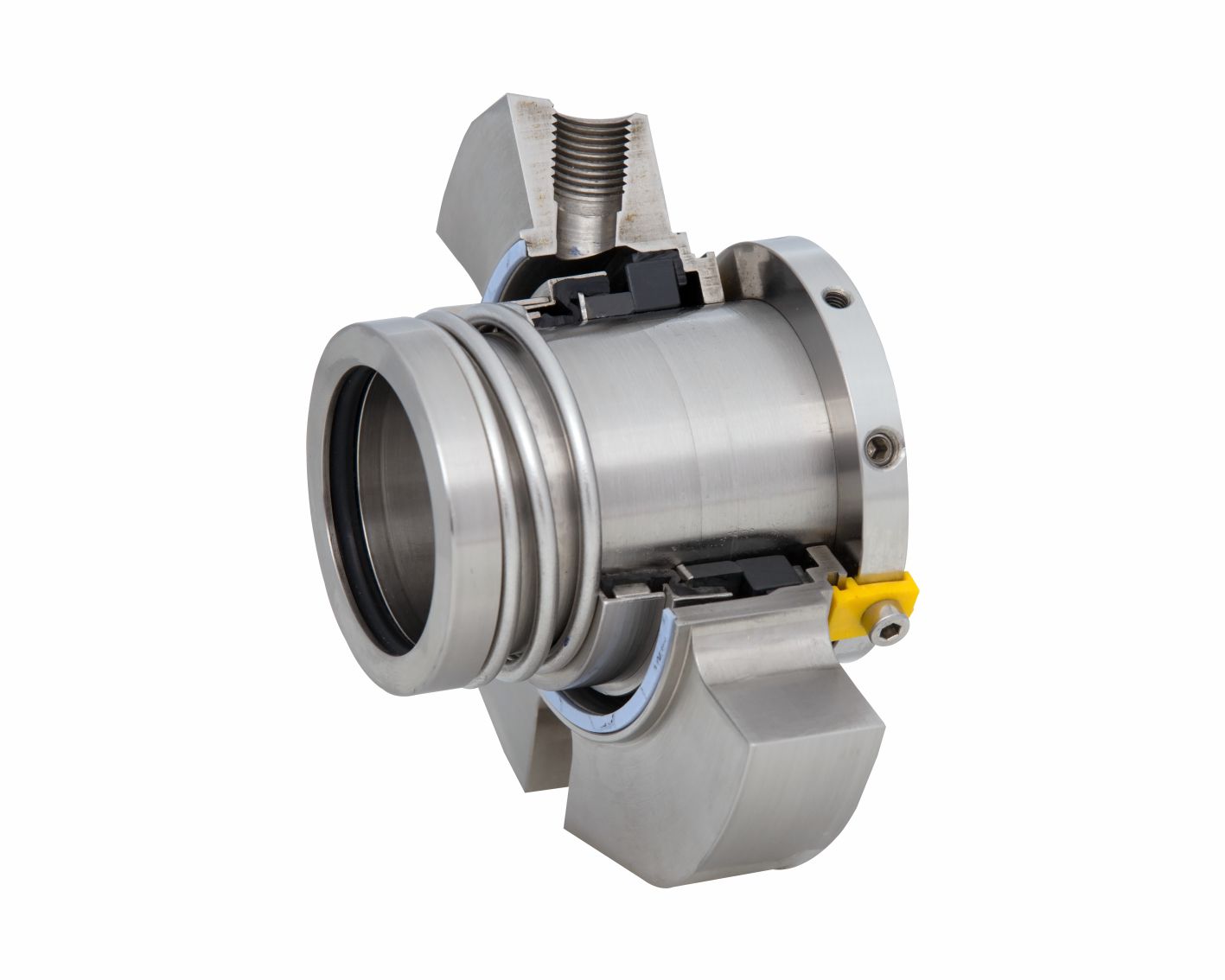

Mechanical Seals for Pumps

Product Description

  • Independent of direction of rotation
  • Metric and inch sizes available
  • Single cartridge seal
  • Unbalanced

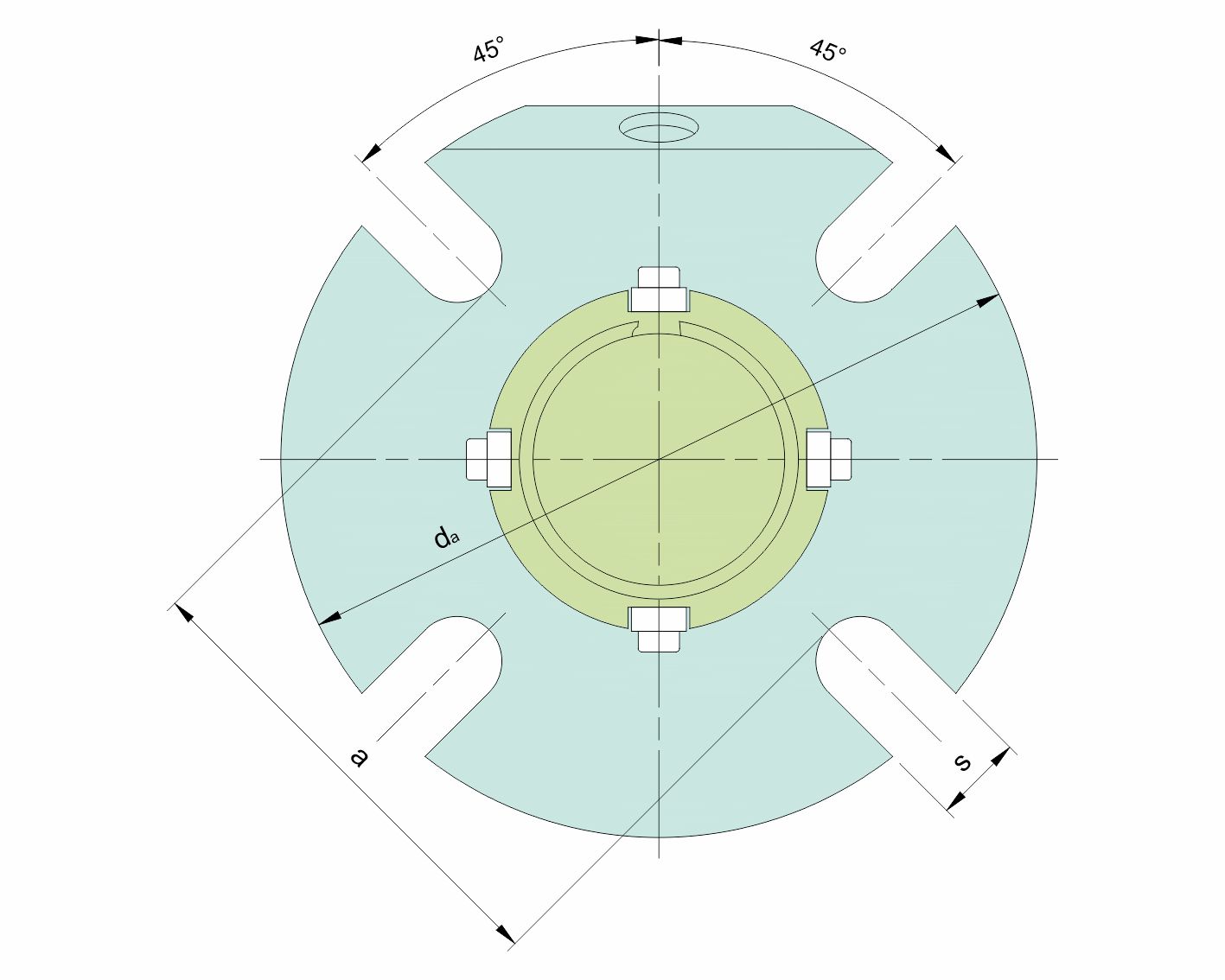

Details

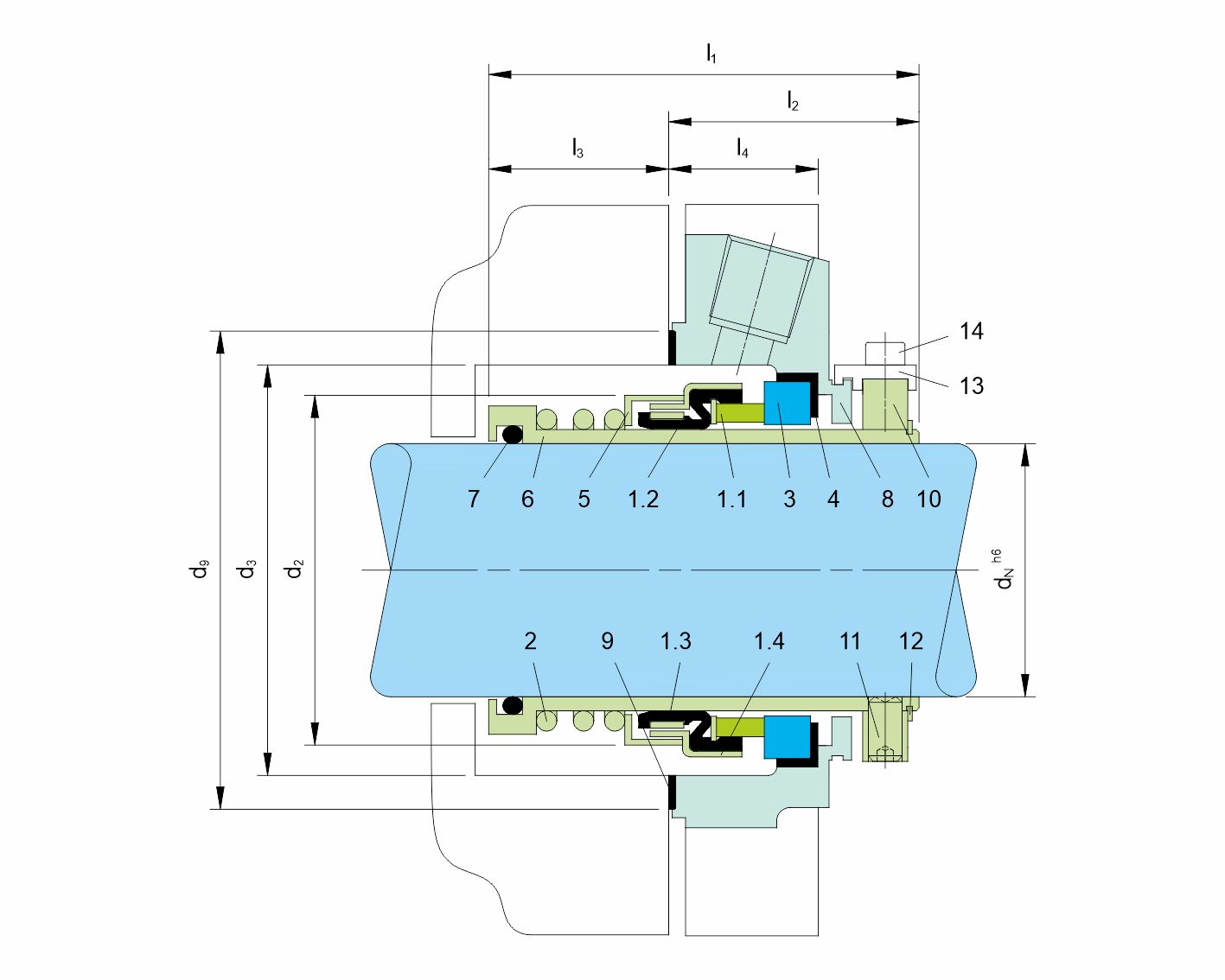

Item No. Description
1 Bellows unit
1.1 Seal face
1.2 Bellows
1.3 Drive collar
1.4 L-ring (spring collar)
2 Spring
3 Seat (G60)
4 O-Ring or corner sleeve
5 Spacer ring
6 Shaft sleeve
7 O-ring
8 Cover
9 Gasket
10 Drive collar
11 Set screw
12 Snap ring
13 Assembly fixture
14 Socket head screw
15 Screw plug

Technical Features

  • Comes with flush connection acc. to API 682, Plan 11 for seal chamber cleaning and cooling
  • Economical cartridge solution
  • Fits into any installation space due to smallest outer diameter
  • No modifications of the pump's installation chamber necessary
  • Straightforward and easy installation

Typical Industrial Applications

  • Water and waste water technology
  • Sewage water
  • Cold and hot water
  • Cooling fluids
  • Beverages
  • Circulating pumps
  • Water and waste water pumps

Materials

Seal face:Carbon graphite resin impregnated (B),
Silicon carbide (Q1)
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V), EPDM (E)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)

Performance Capabilities

Temperature: t = -20 °C ... 140 °C (-4 °F ... 284 °F)
Pressure: p1 = 12 bar (174 PSI)
Speed = 10 m/s (33 ft/s
Axial movement: ± 0.5 mm
