Mechanical Seals As Per API 682

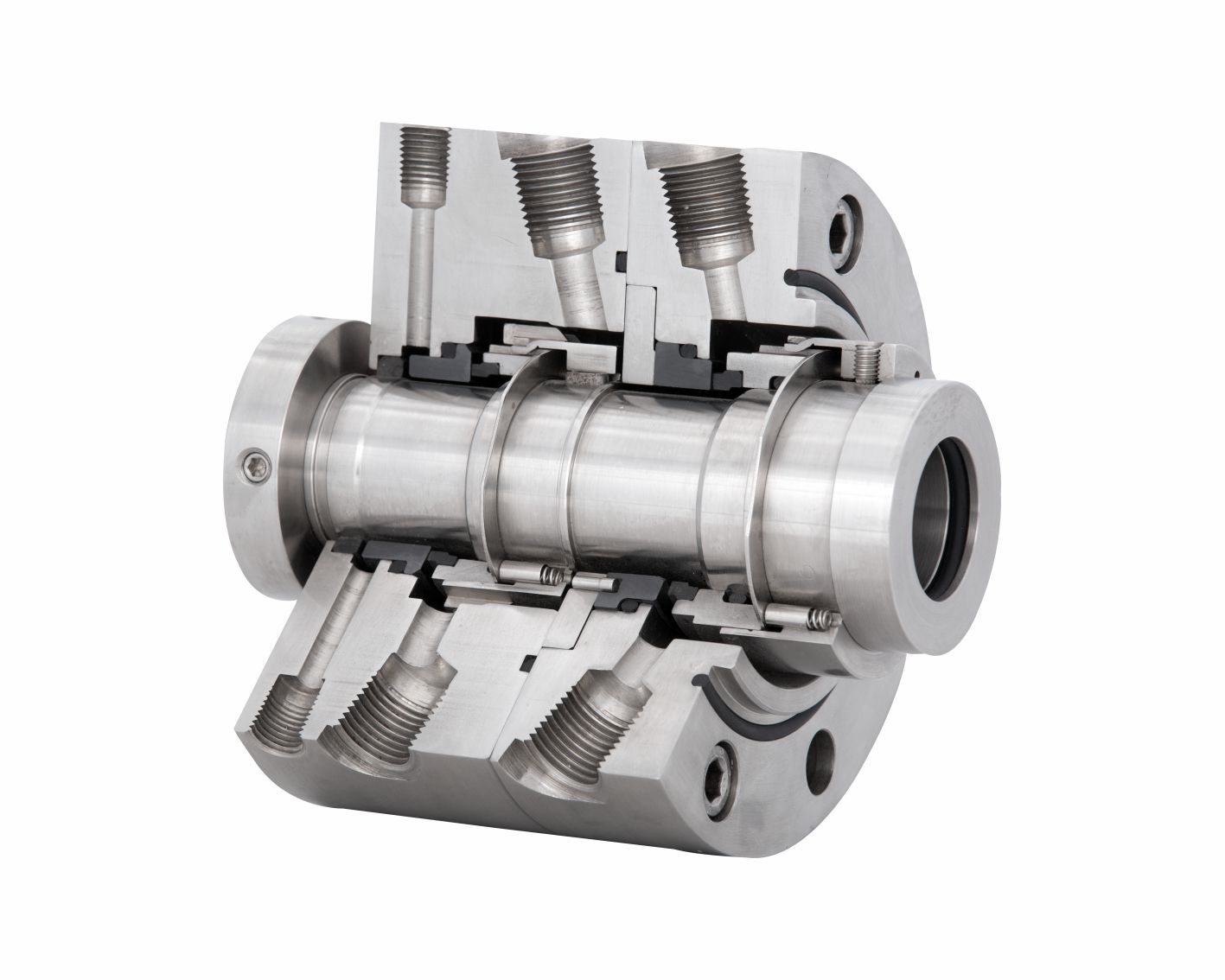

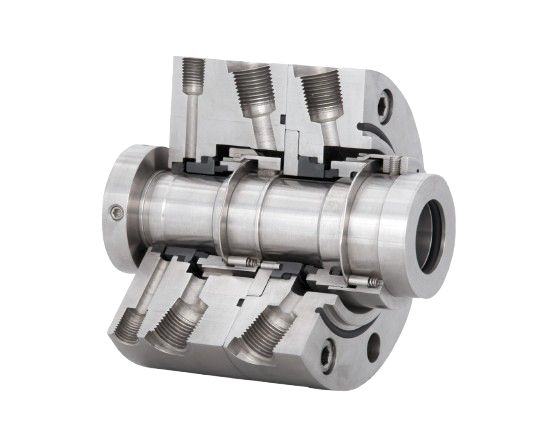

B750VK

B750VK

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Bi-directional design available
  • Category 2 and 3, Type A, Arrangement 2 or 3
  • Design in accordance to API 682 / ISO 21049
  • Pumping device available for increased efficiency in circulation
  • Rotary unit with multiple springs
  • Can accommodate reverse pressure

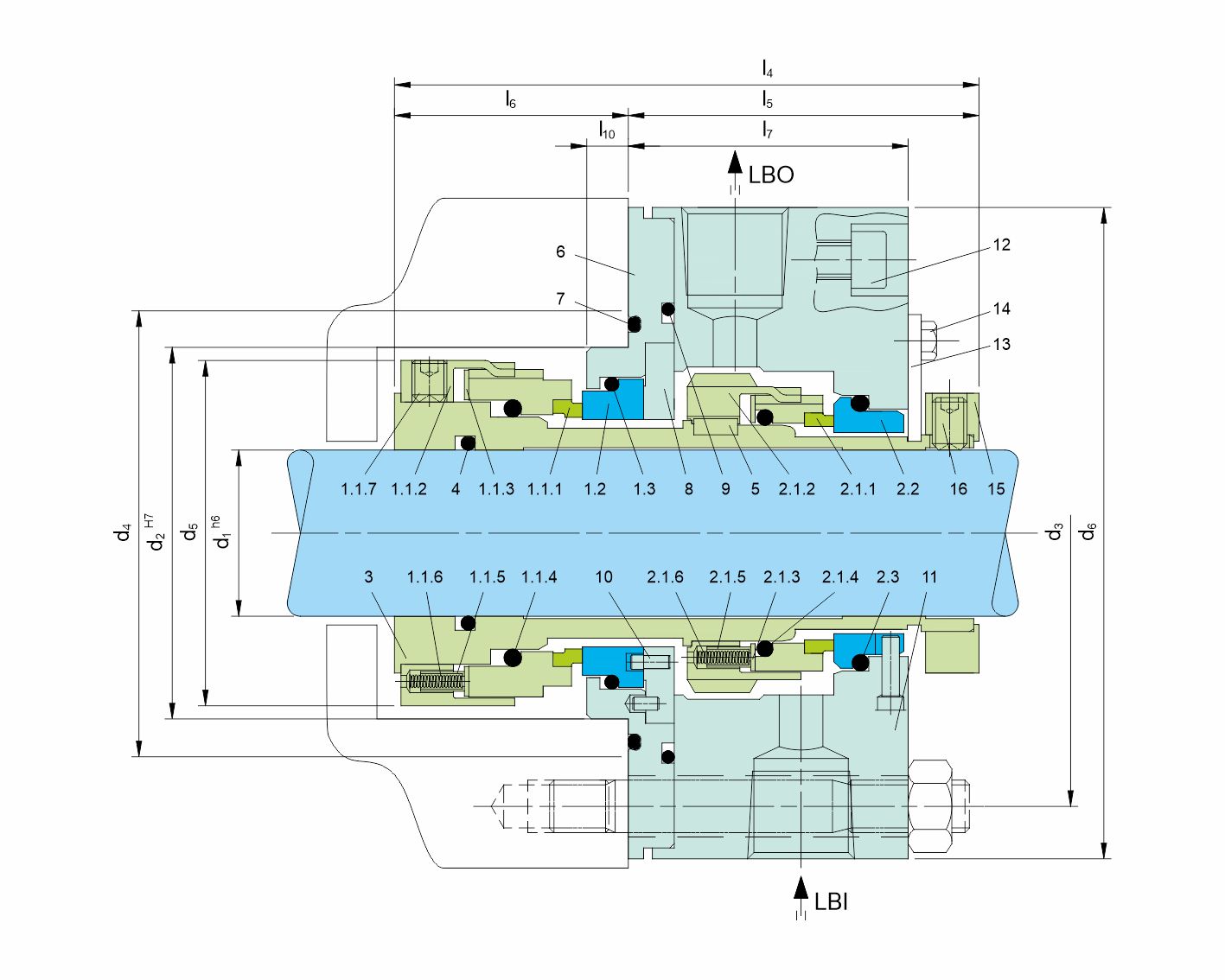

Details
Item No. Description
1.1.1, 2.1.1 Seal face
1.1.2, 2.1.2 Driver
1.1.3, 2.1.3 Thrust ring
1.1.4, 2.1.4, 1.3, 2.3 O-Ring
1.1.5, 2.1.5 Spring Sleeve
1.1.6, 2.1.6 Spring
1.1.7 Set screw
1.2, 2.2 Seat
3 Shaft sleeve
4 O-Ring
5 Key
6 Adapter
7 O-Ring
8 Washer
9 O-Ring
10 Pin
11 Housing
12 HSH cap screw
13 Assembly fixture
14 Hexagon bolt
15 Set ring
16 Set screw
