- Circulation in accordance with API 682 / ISO 21049: Plan 51, Plan 52

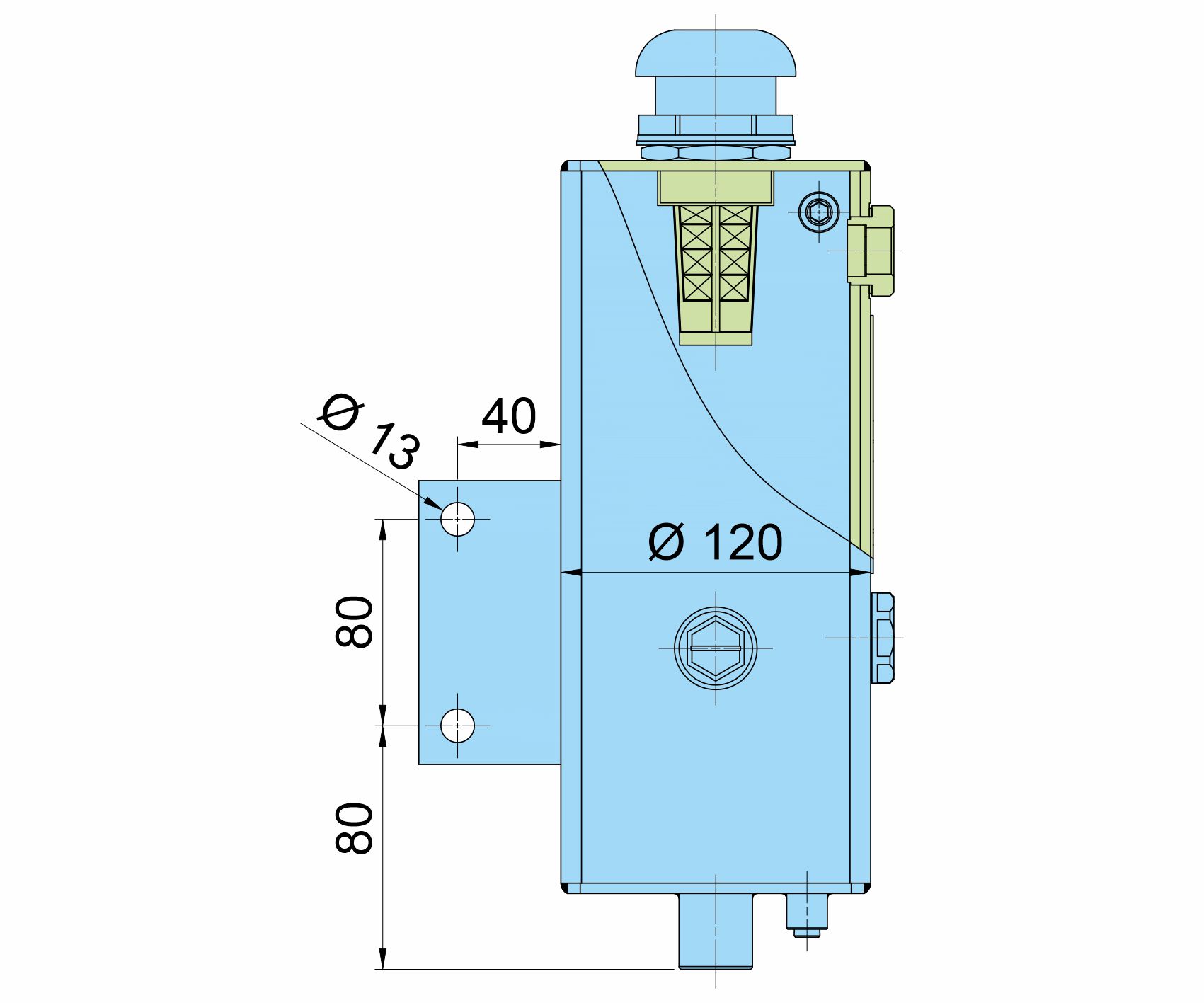

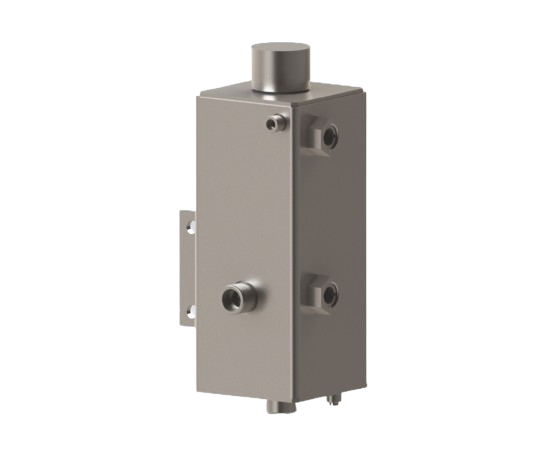

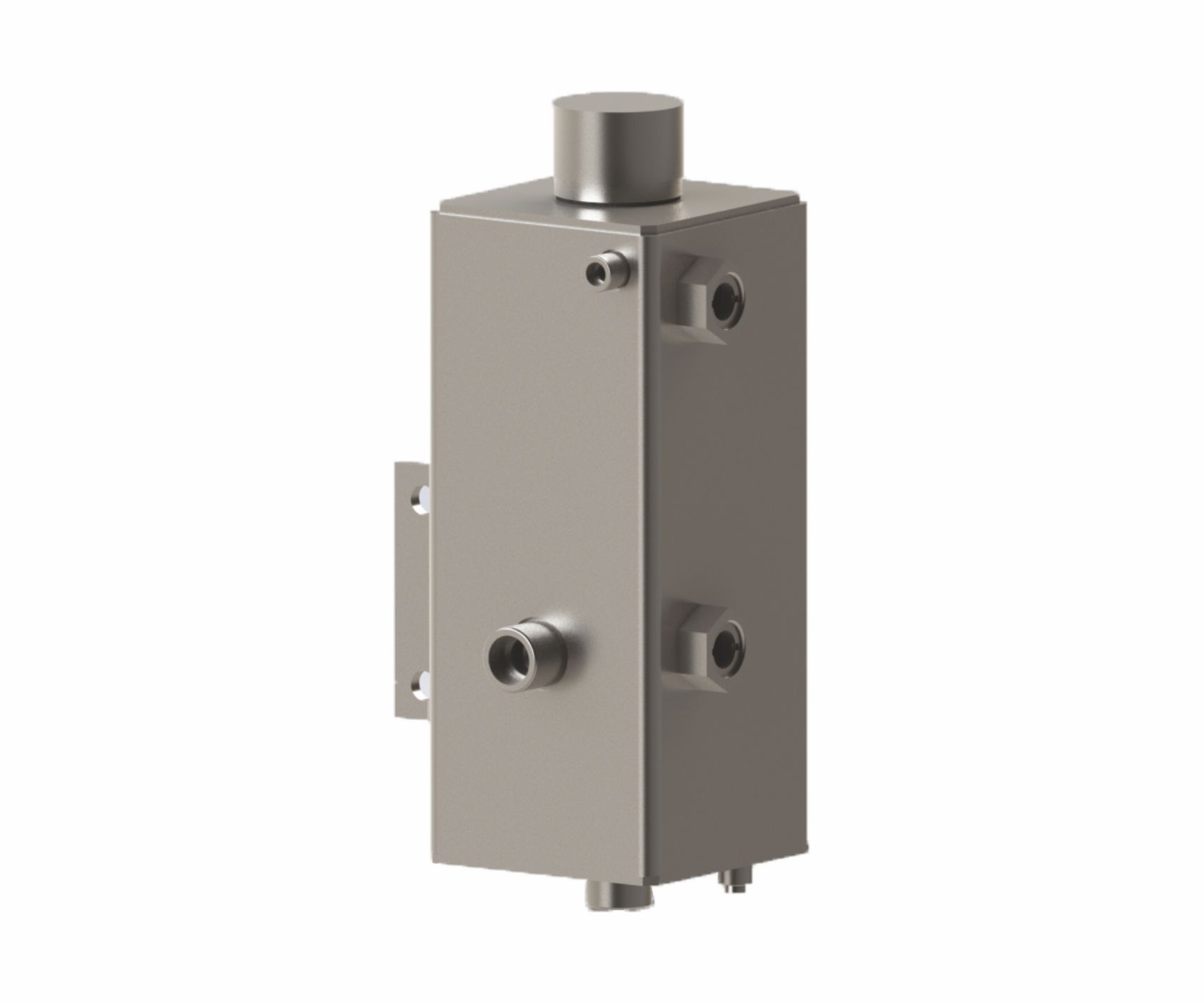

- Quench fluid supply system is employed for applications in sealing systems with a wide variety of operating parameters for supplying quench fluid to double and tandem mechanical seals. They act as a convenient fluid reservoir. The exchange of fluid takes place by the thermosiphon principle or by forced circulation, for example with a pumping screw. The QFS2000 stainless steel tank is equipped with sight-glasses for monitoring the MIN/MAX level and can be fastened with a lug fixture. The leakage overflow can be selectively discharged.

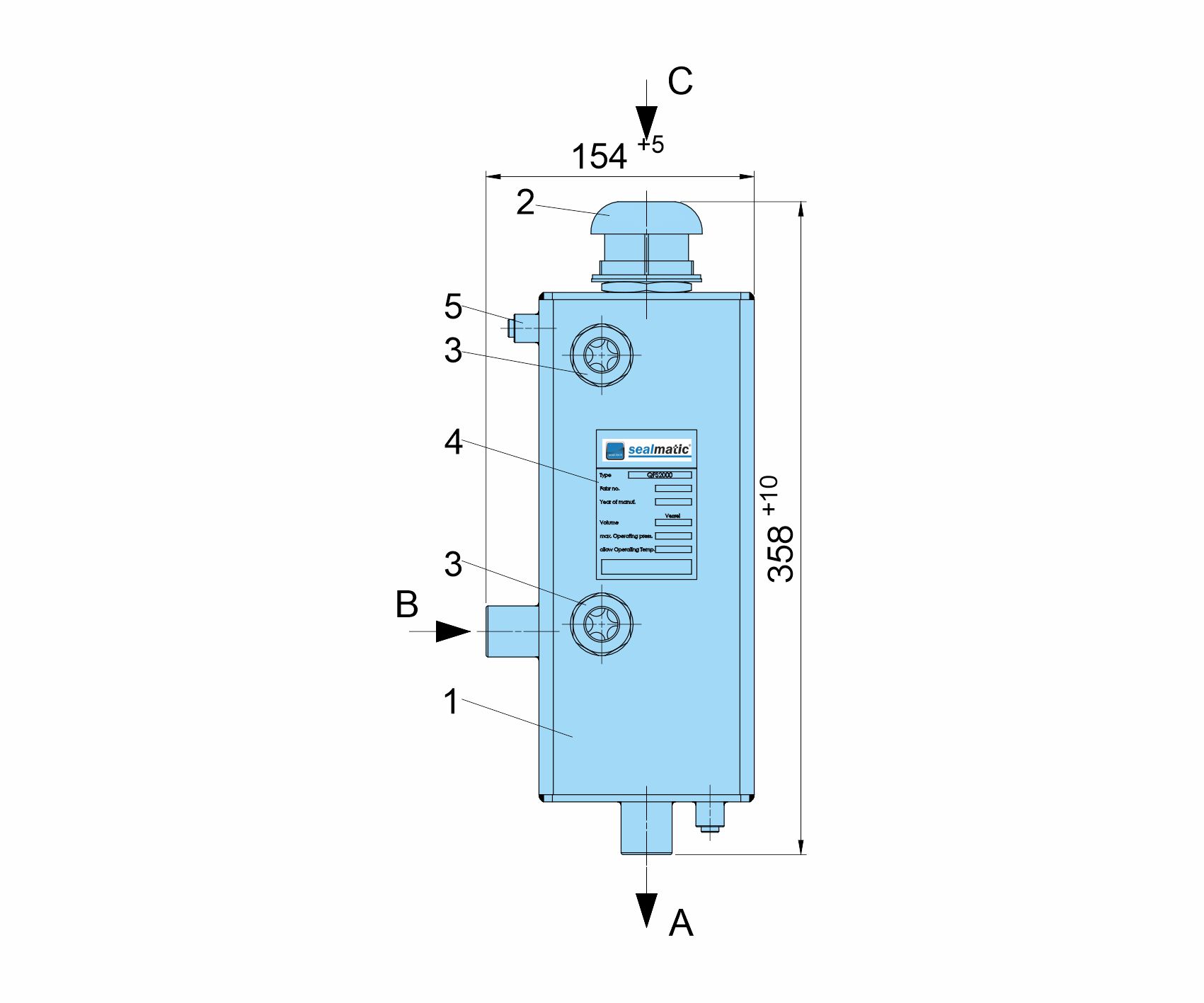

|1||Storage tank (capacity 3L)|
|2||Inlet filter with vented cap|
|3||Sight-glass or level switch|
|5||Overflow G 1/8|
