Mechanical Seals

B750VN Single Seal

API 682 4th Edition Category 2&3
Seal Type A (Rotating)
Configuration 1CW-FL (Contacting Wet – Floating throttle bushing)

Product Description

  • API 682 Category 2 and 3, Type A, Arrangement 1
  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Pumping device available for increased efficiency in circulation
  • Rotary unit with multiple springs

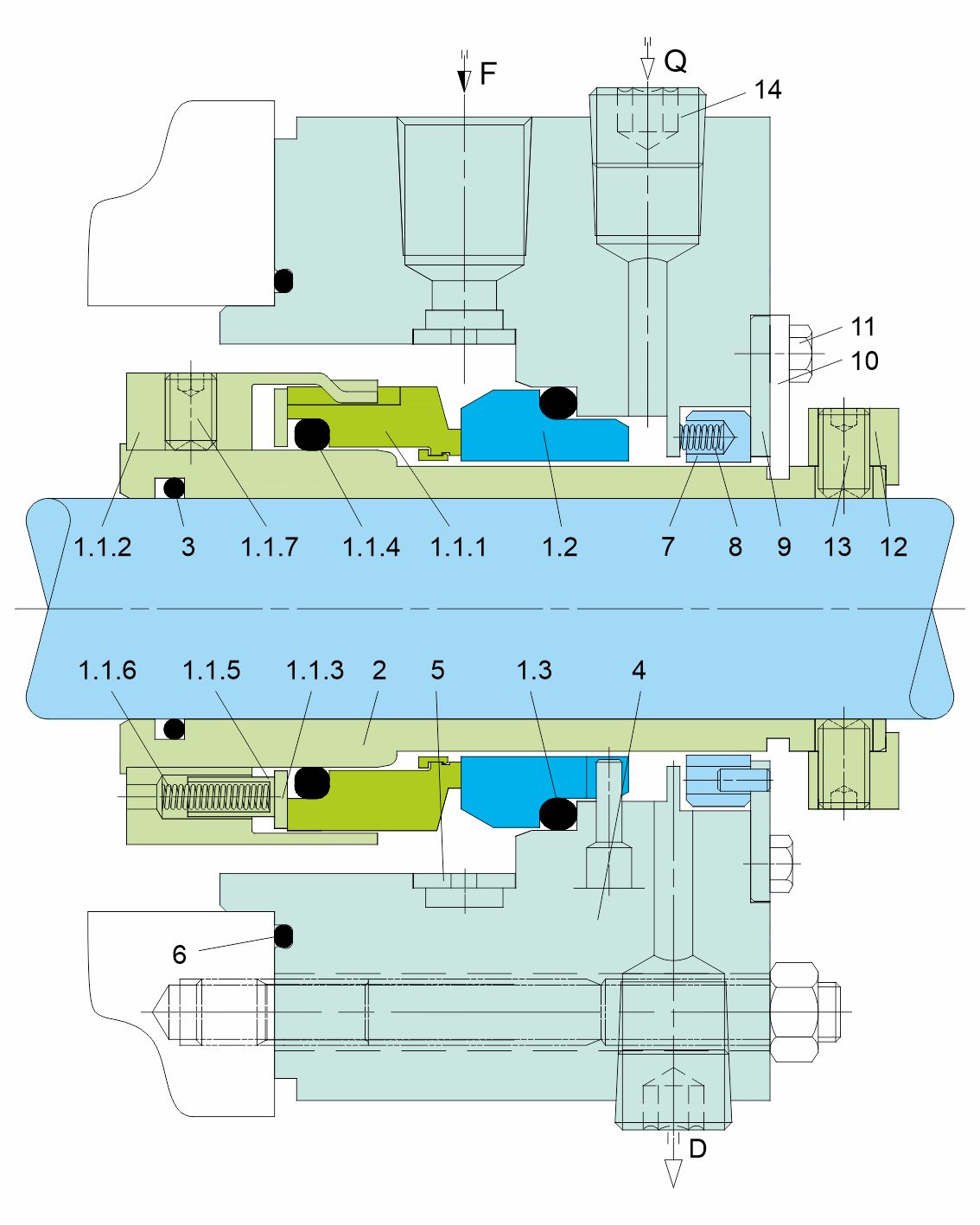

Details
Item No. Description
1.1.1 Seal ring
1.1.2 Driver
1.1.3 Thrust ring
1.1.4,1.3,3,6 O-ring
1.1.5 Spring Sleeve
1.1.6,8 Spring
1.1.7,13 Set screw
1.2 Mating ring
2 Shaft sleeve
4 Gland
5 Multi-flow distributor
7 Throttle bushing
9 Washer
10 Setting plate
11 Hexagon bolt
12 Set ring
14 Plug
F Flush
Q Quench
D Drain
