Standard Cartridge Seals

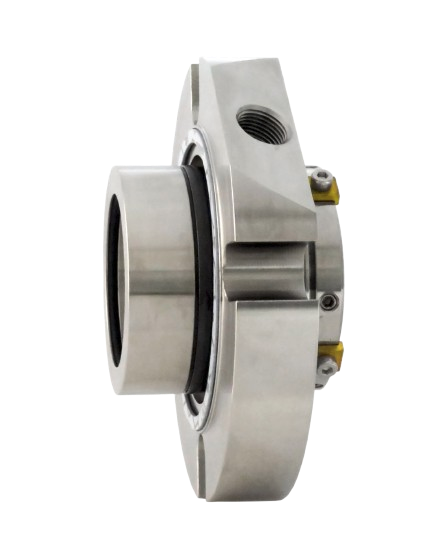

CTX Single Seals

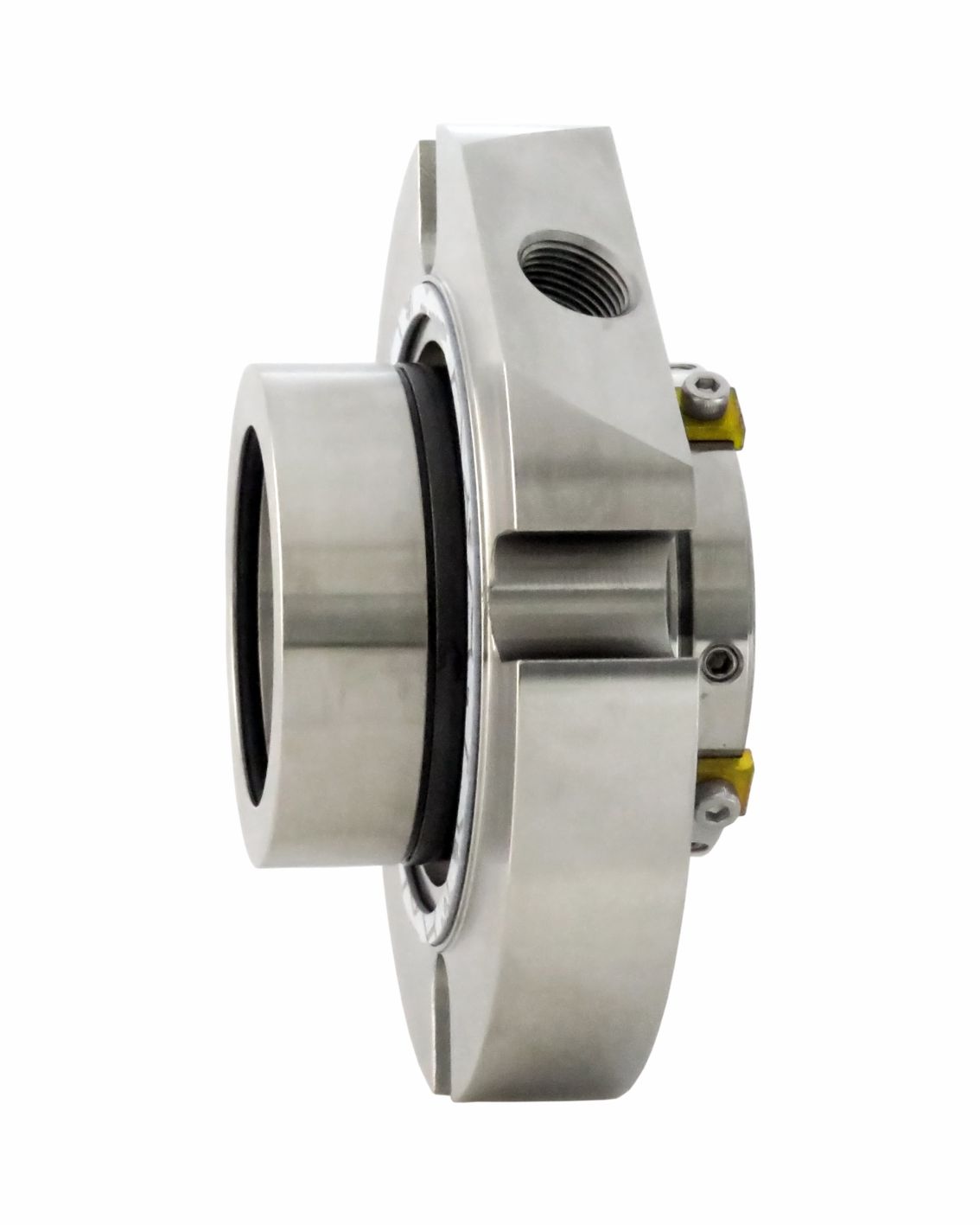

CTX Single Seals

Product Description

  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction

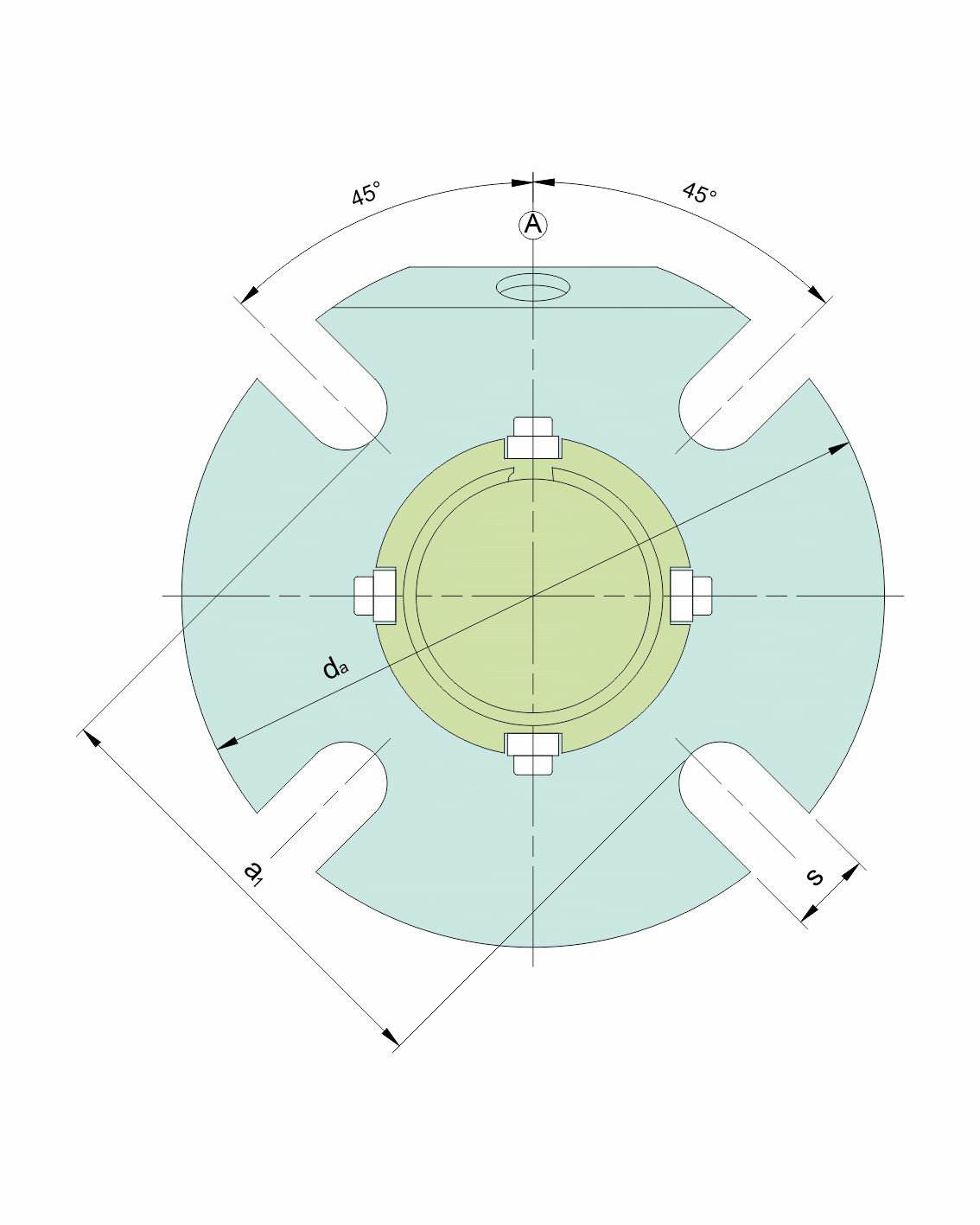

Details

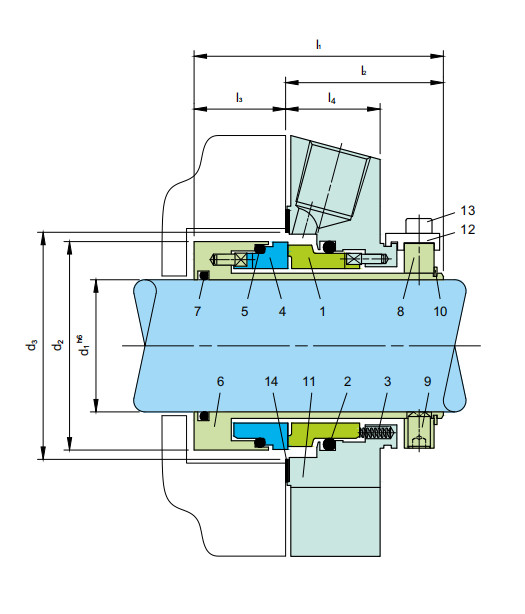

Item No. Description
1 Seal face
2, 5, 7 O-Ring
3 Spring
4 Seat
6 Shaft sleeve
8 Drive collar
9 Set screw
10 Snap ring
11 Cover
12 Assembly fixture
13 HSH Cap Screw
14 Gasket
15 Lip seal (-QN), throttle ring (-TN)
