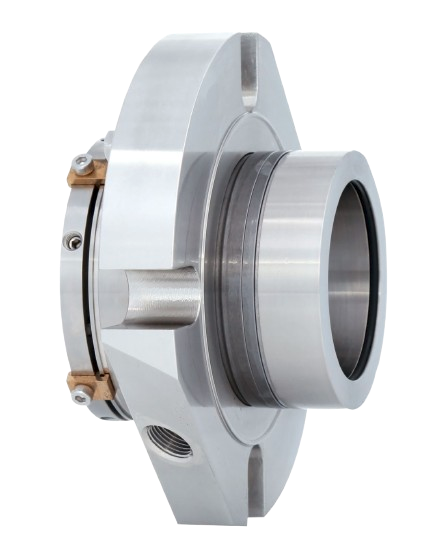

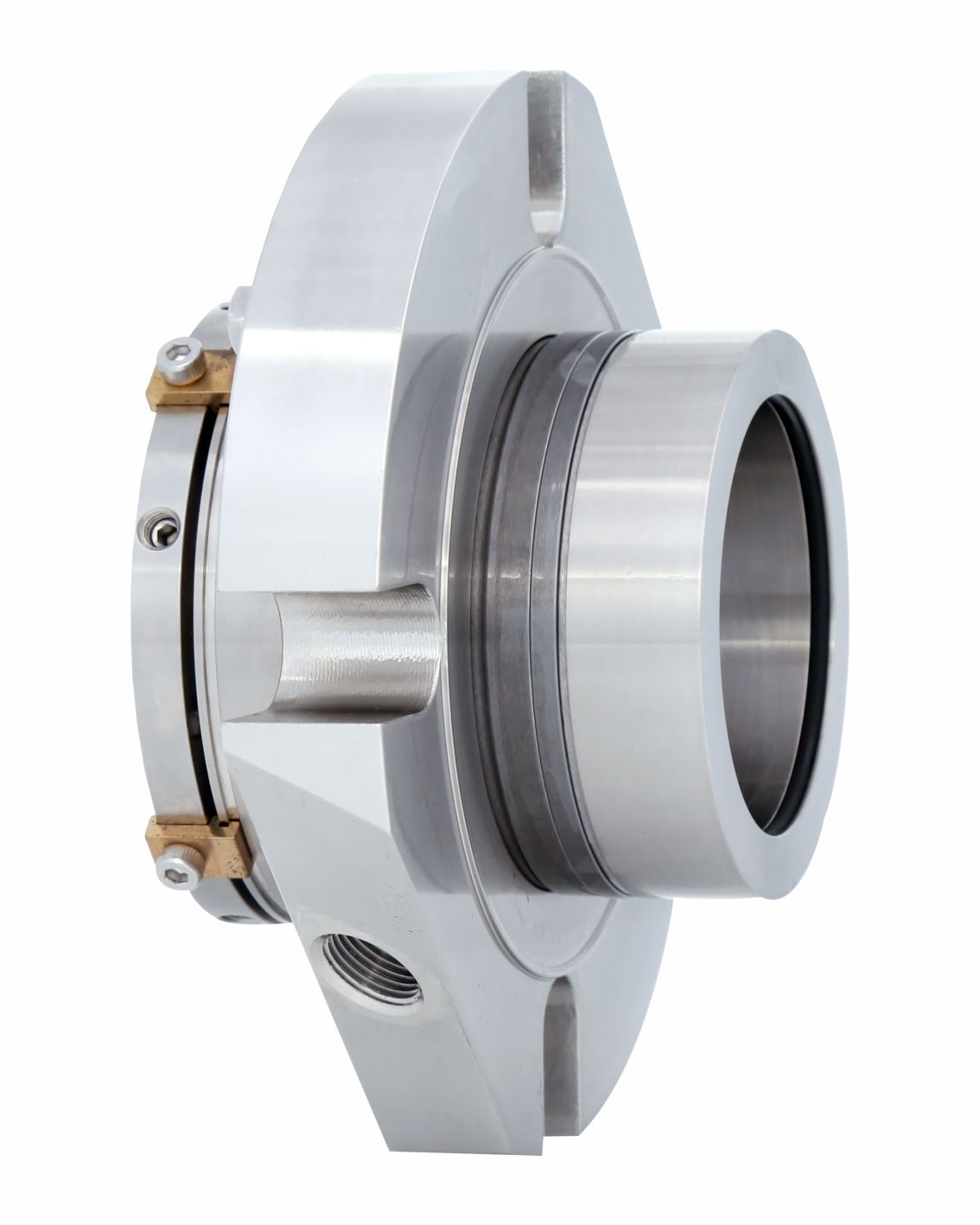

CTX ANSI Dual Seals

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Available for standard (CTX-ASDN) and big bore (CTX-ABDN) seal chambers
  • Double pressure balanced
  • Designed with integrated pumping device for increased efficiency in circulation

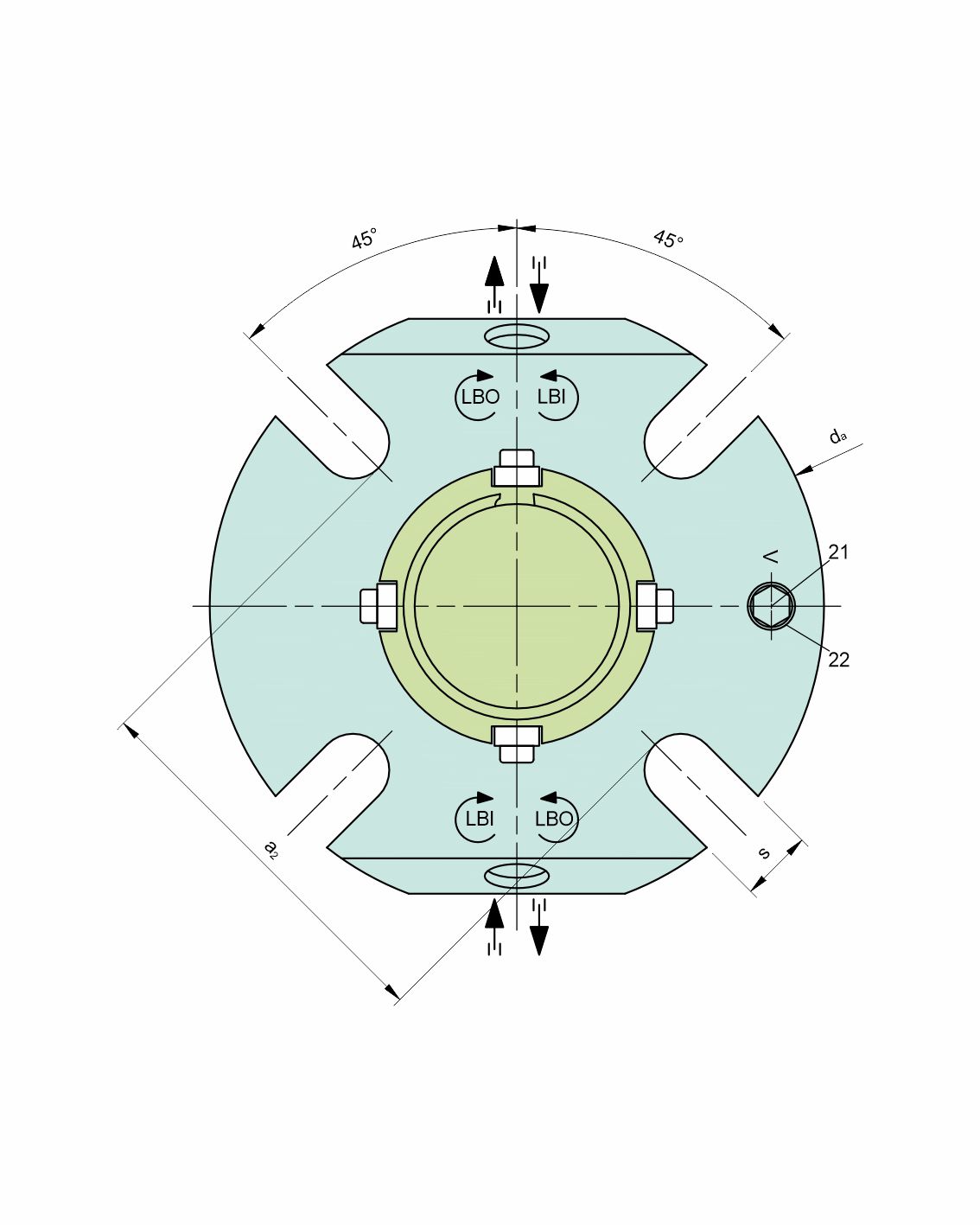

Details

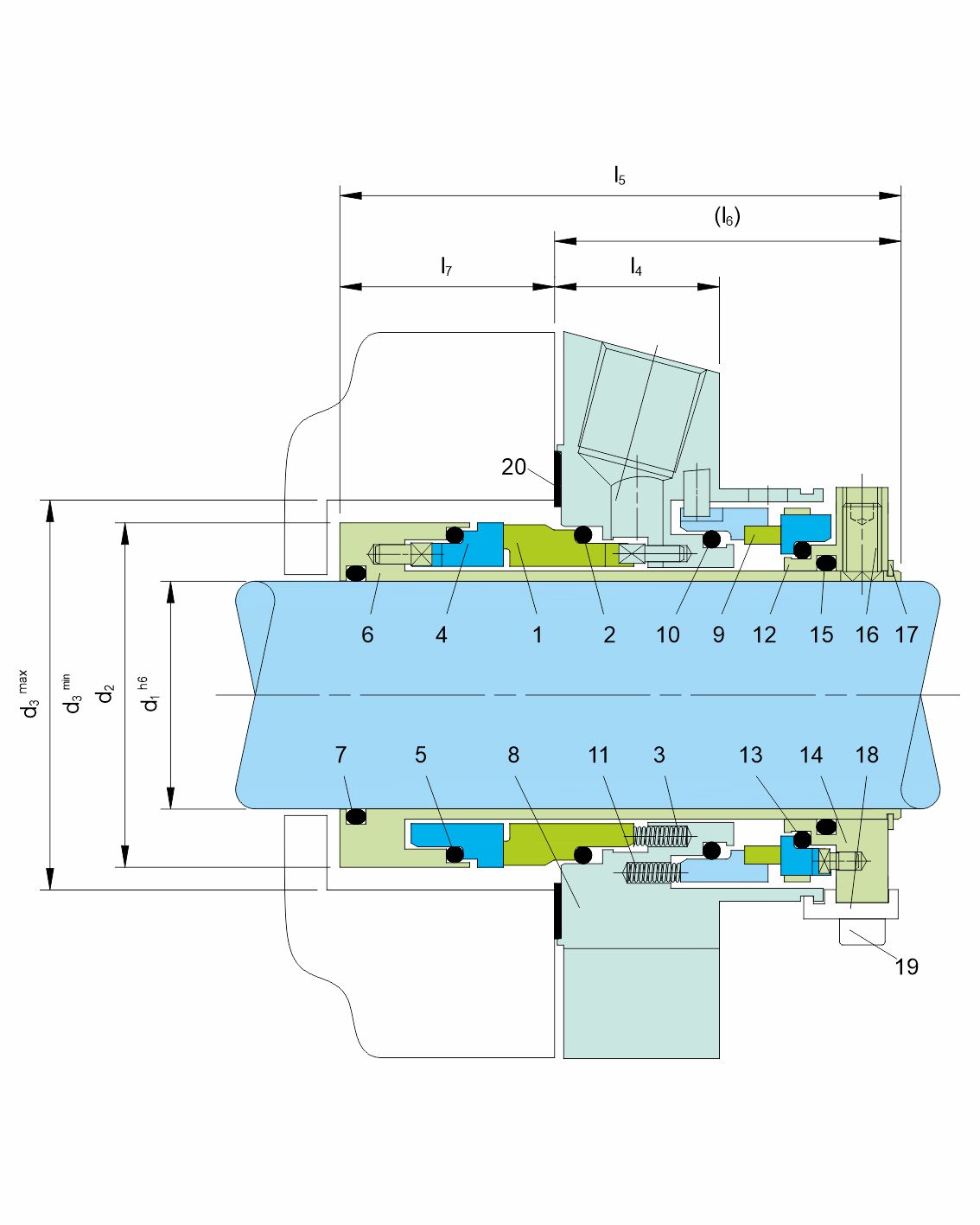

Item No. Description
1 Seal face
2, 5, 7, 10, 13, 15 O-Ring
3 Spring
4 Seat
6 Shaft sleeve
8 Cover
9 Seal face
11 Spring
12 Seat
14 Drive collar
16 Set screw
17 Snap ring
18 Assembly fixture
19 HSH Cap Screw
20 Gasket
21 Screw plug
22 Gasket
