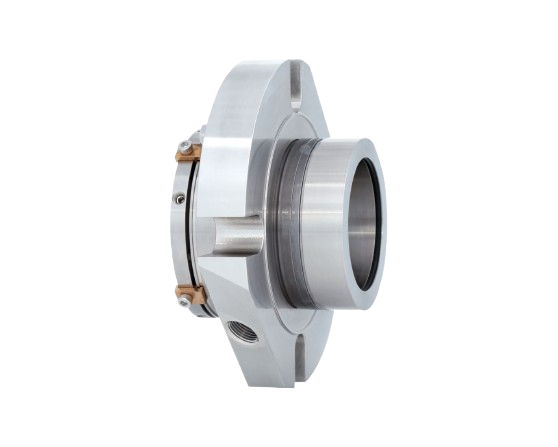

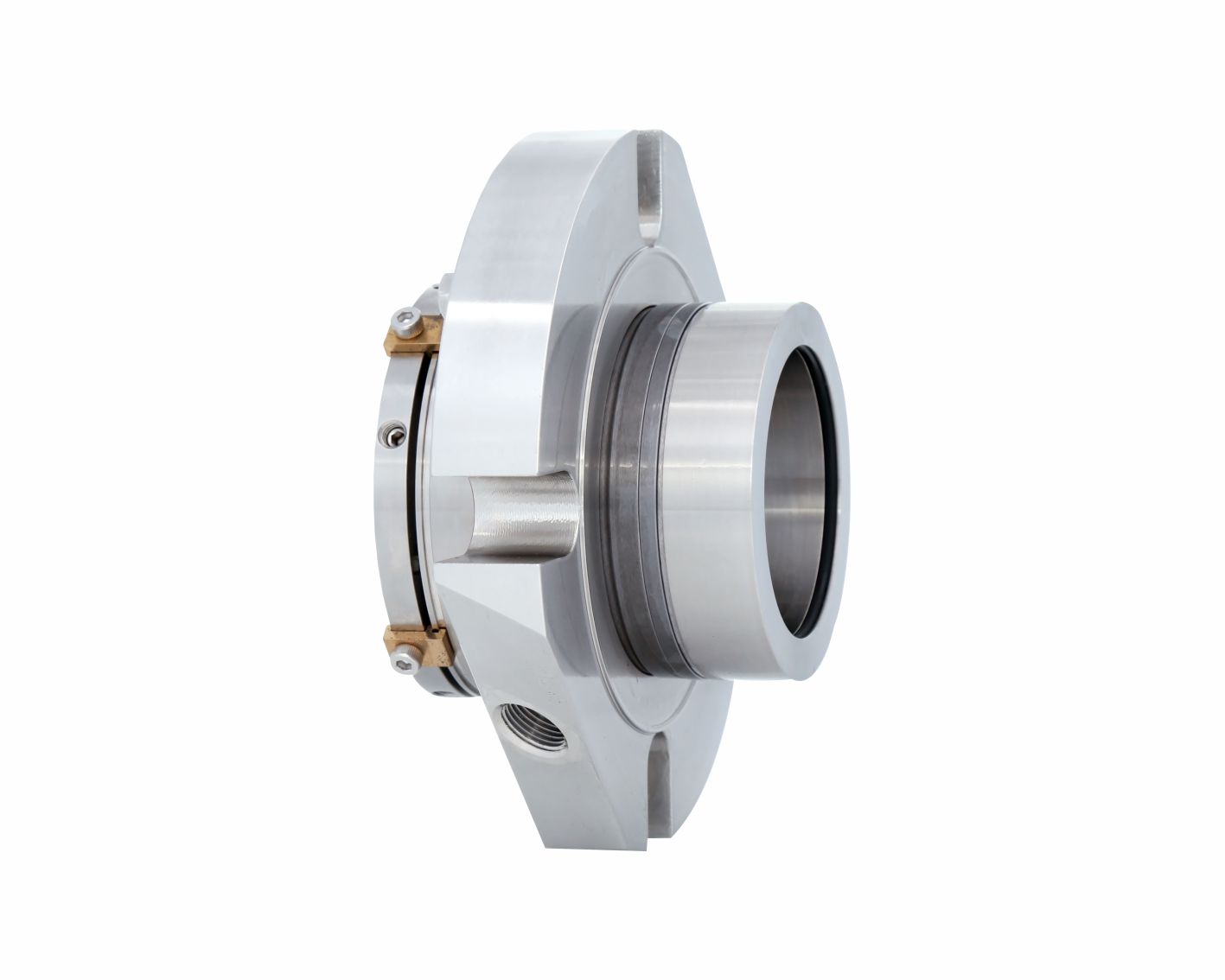

Standard Cartridge Seals

CTX Dual Seals

CTX Dual Seals

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Double pressure balanced
  • Designed with integrated pumping device for increased efficiency in circulation
  • Special design available for eccentric screw pumps
Details

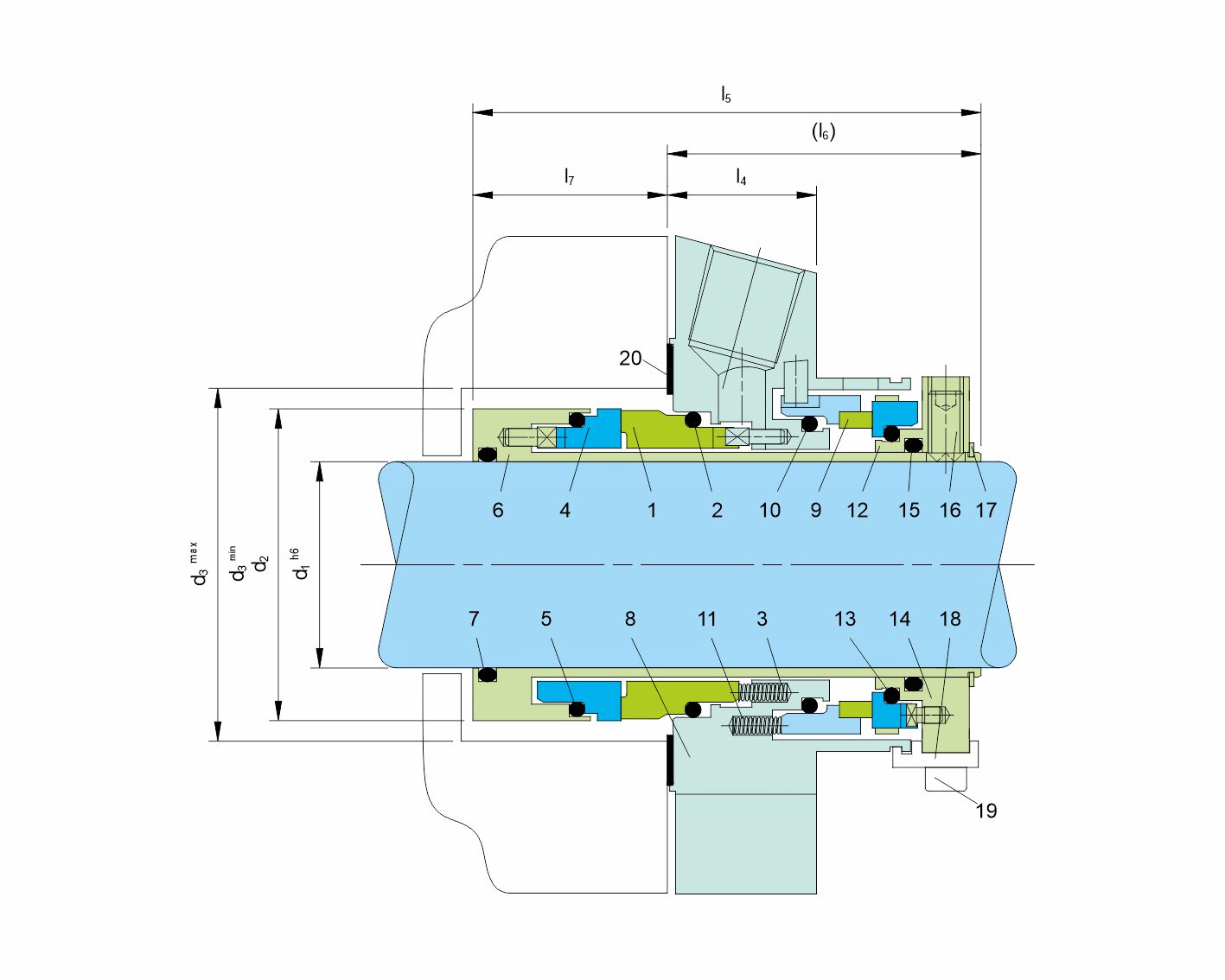

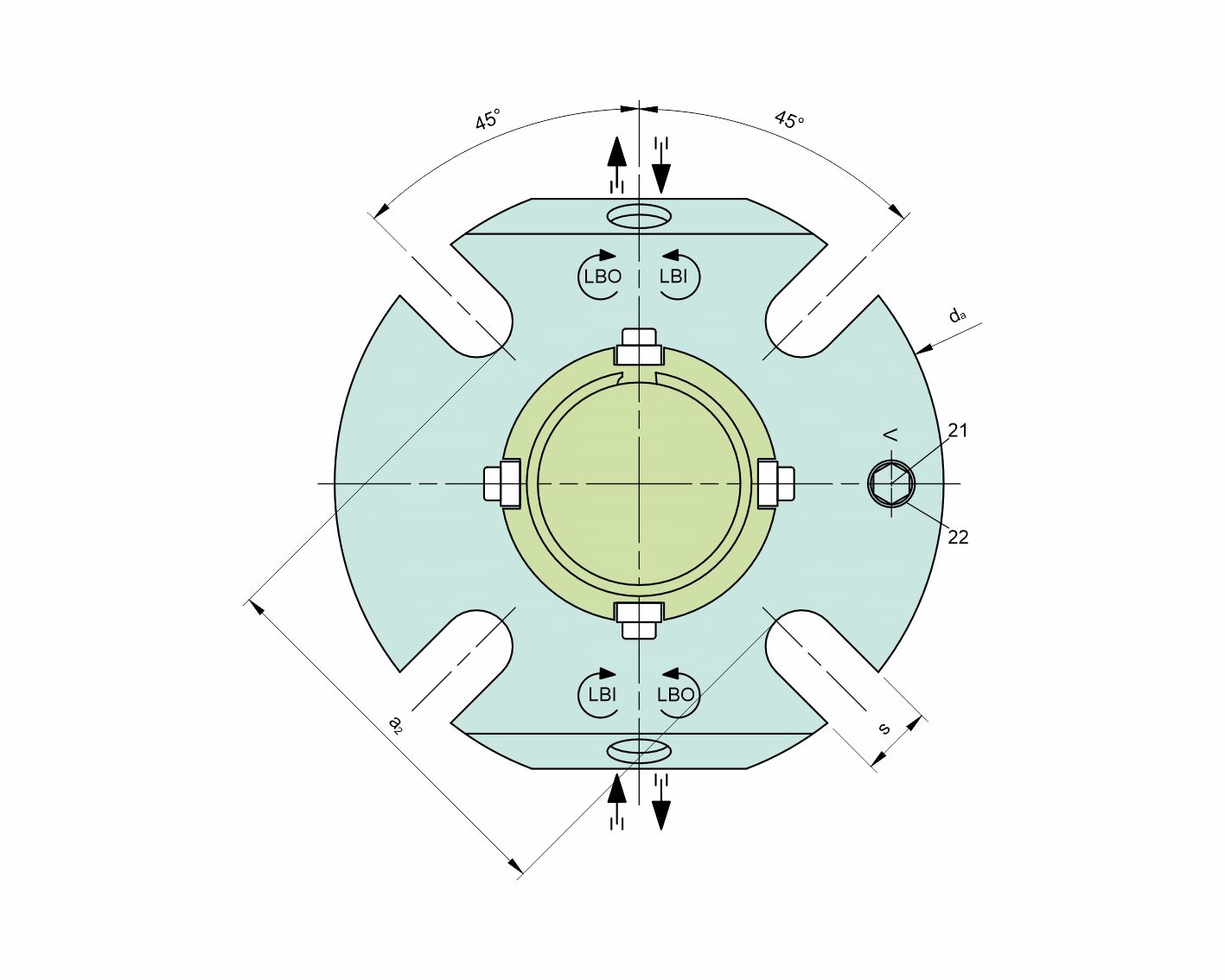

Item No. Description
1 Seal face
2, 5, 7, 10, 13 15 O-Ring
11 Spring
12 Seat
6 Shaft sleeve
8 Cover
9 Seal face
14 Drive collar
16 Set screw
17 Snap ring
18 Assembly fixture
19 HSH Cap Screw
20 Gasket
21 Screw plug
22 Gasket
