Gas Lubricated Seals For Agitators

GSAZ

CE0035 Certification
EC 1935/2004 Certification
CE Certification
Reach
RoHS
RoHS
API Certification
Mechanical Seals

GSAZ

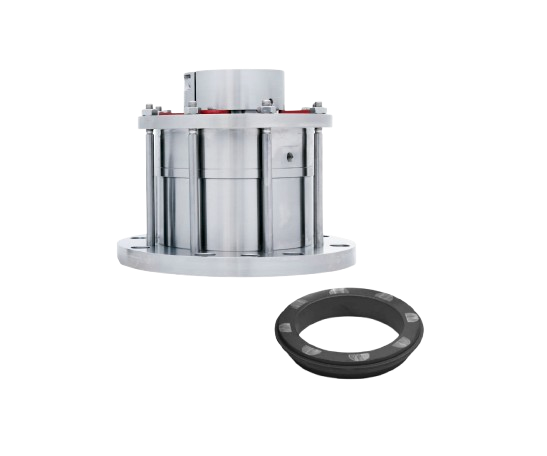

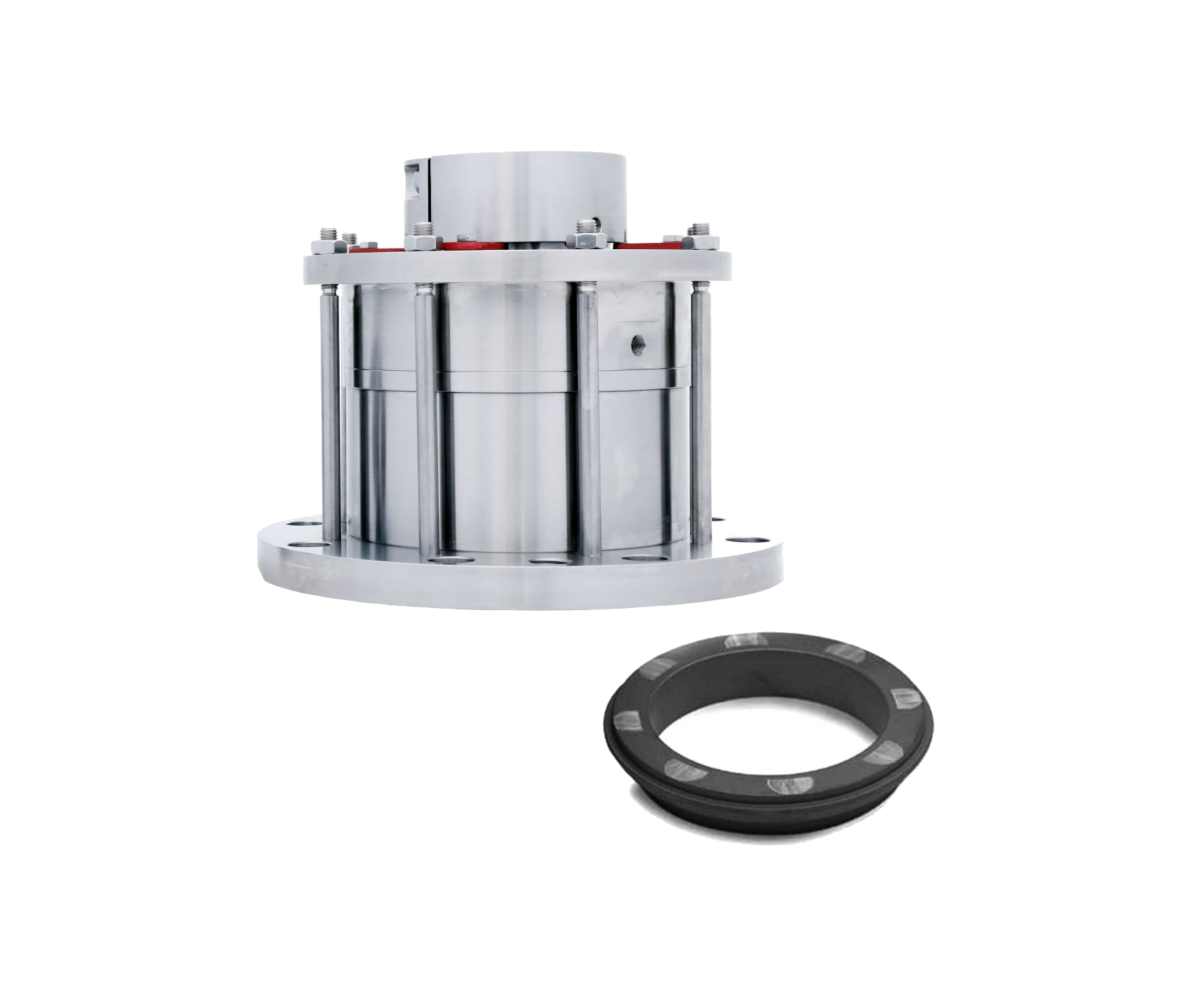

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Gas-lubricated design
  • Designed for top entry vessels
Details

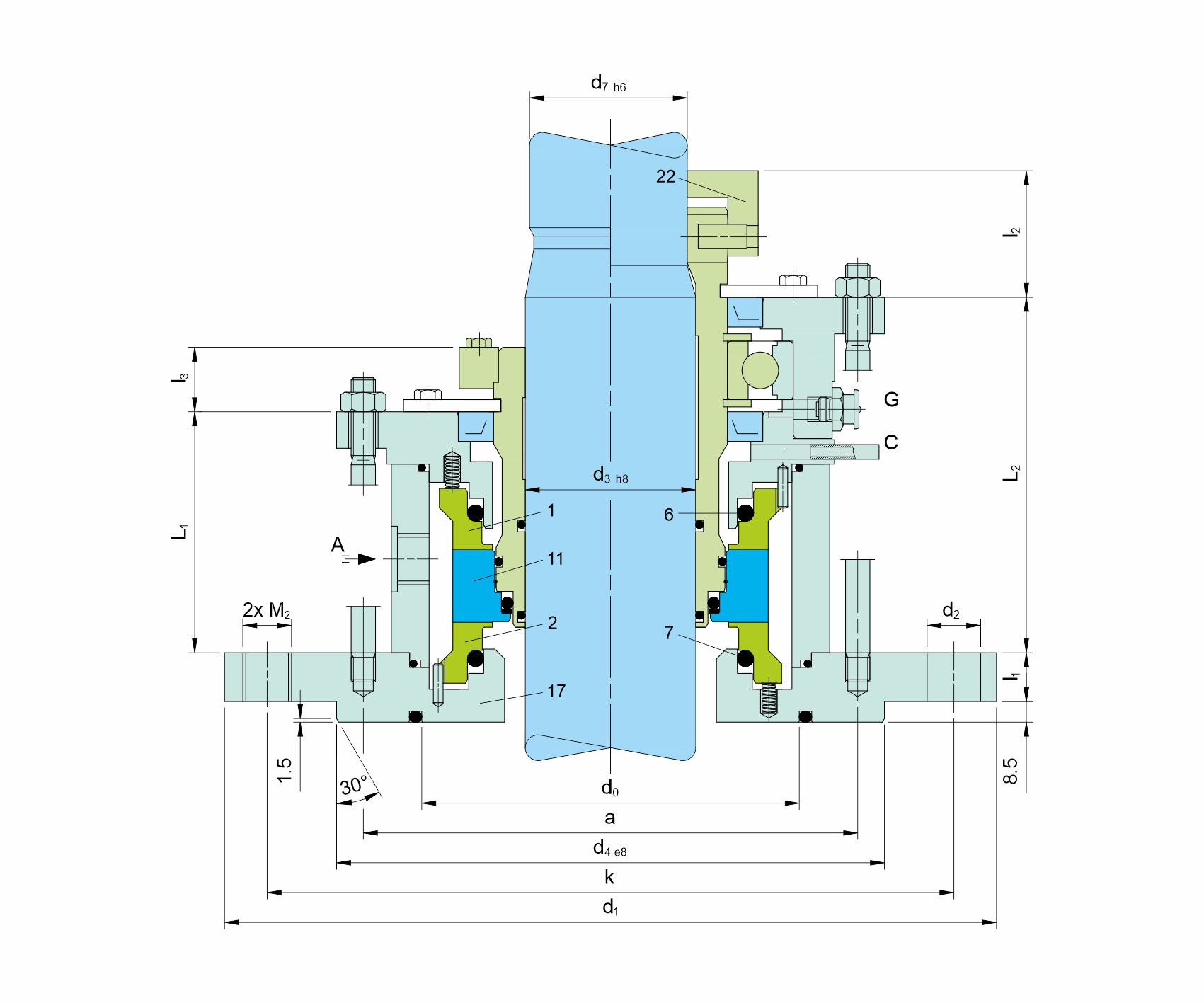

Item No. Description
1 Seal face(Diamond Coated), atmosphere side
2 Seal face (Q1), product side
6, 7 O-Ring
11 Seat (Q1)
17 Flange
22 Clamping ring

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Seal faces are designed to be noncontacting during operation
  • Designed for environmental protection with high efficiency
  • Due to non-contacting design there is no friction on the seal faces and there is no heat generated at the seal or in the medium
  • Trouble free operations as complex components are not required to dissipate frictional heat
  • To accommodate large axial movement torque transmission is through clamping ring
  • Rotating seat is designed and arranged in the center
  • Agitators
  • Chemical industry
  • Environmental harmful media with double seals
  • Food and beverage industry
  • Gases and liquids
  • Media which require high purity
  • Pharmaceutical industry
  • DIN 28136 T2 (for steel vessels)
  • DIN 28141 (flange connection for steel vessels)
  • DIN 28154 (shaft end for steel vessel)
  • DIN 28136 T3 (for glass-lined vessels)
  • DIN 28137 T2 (flange connection for glass-lined vessels)
  • Options:
  • Cooling or heating flange
  • Flush
  • Polymerization barrier
  • Shaft diameter: d3 = 40 ... 220 mm (1.6" ... 8.7") Pressure p1 = vacuum ... 6 bar (87 PSI), Δp = min. 3 bar (44 PSI), p3 = 9 bar (131 PSI)
  • Temperature: t1 = -20 °C ... +150 °C (-4 °F ... +302 °F), with cooling flange 250 °C (482 °F)
  • Speed = 0 ... 10 m/s ( 0 ... 33 ft/s
