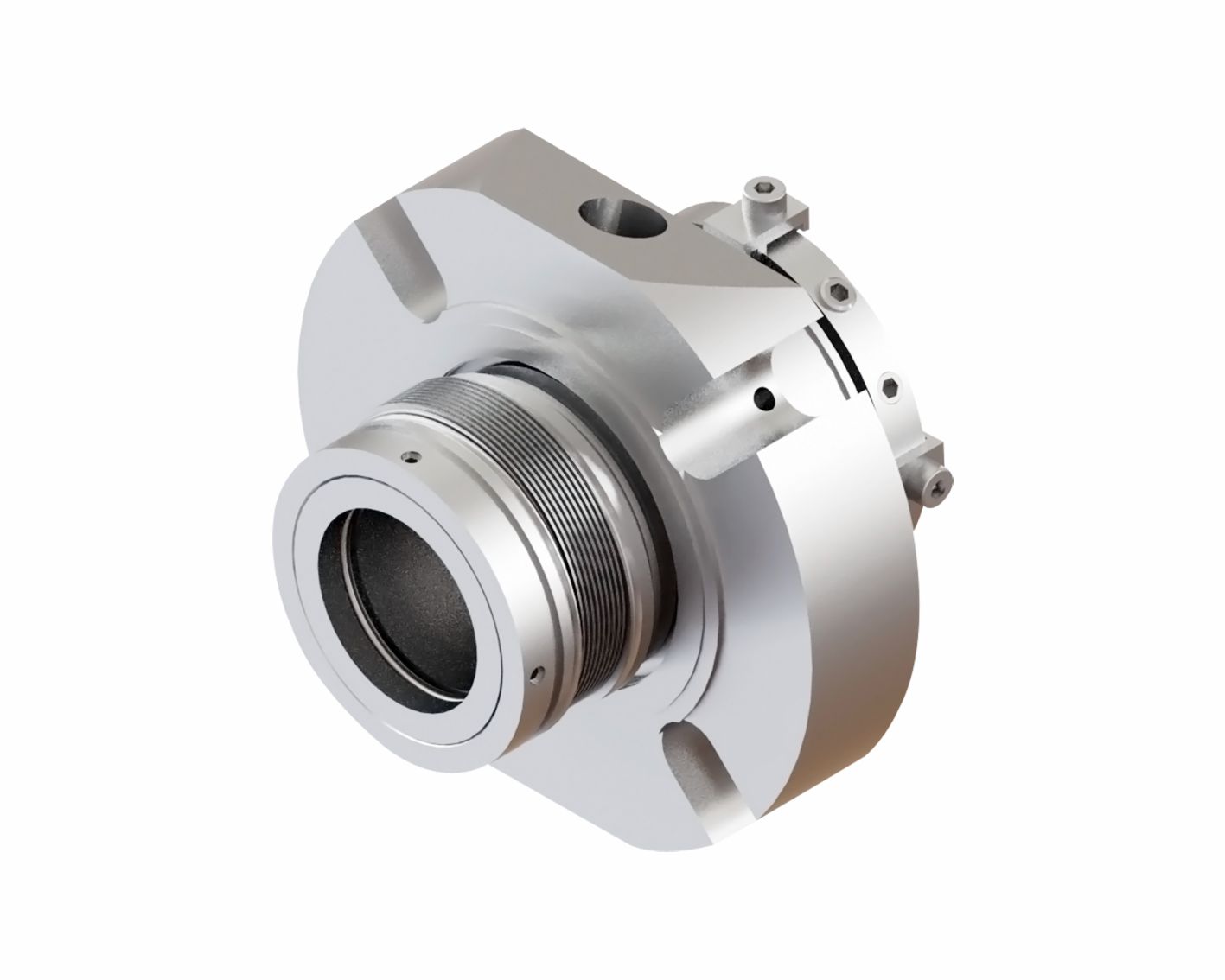

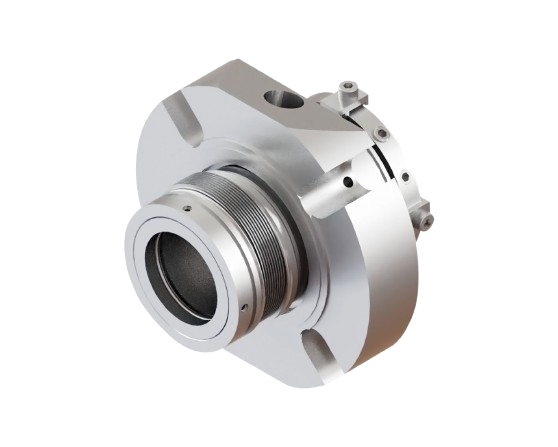

Standard Cartridge Seals

MTX Dual Seals

MTX Dual Seals

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Metal bellows design
  • Designed with integrated pumping device for increased efficiency in circulation
  • Stationary O-ring design
  • Seals with API Plan 52 and API Plan 53/54
Details

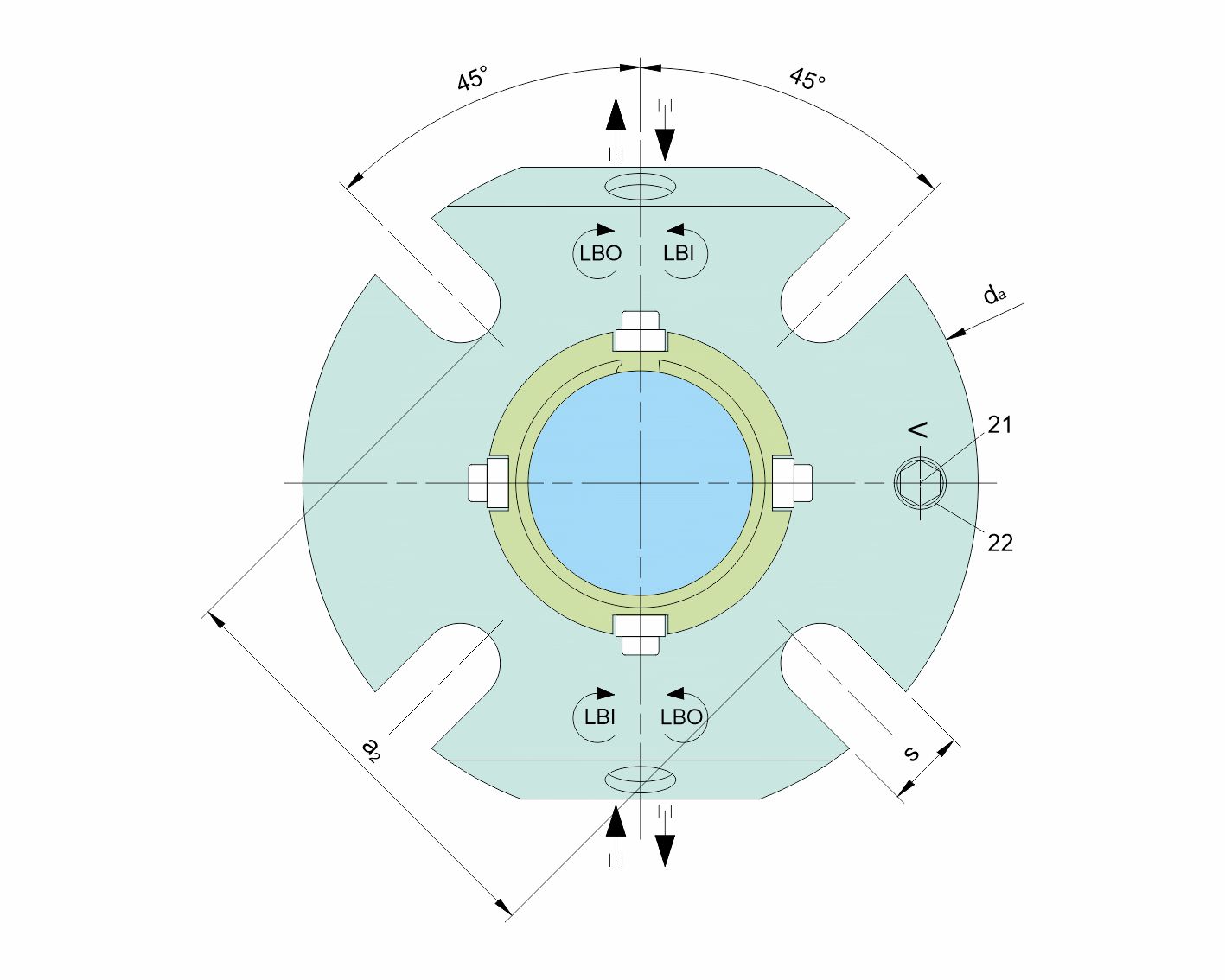

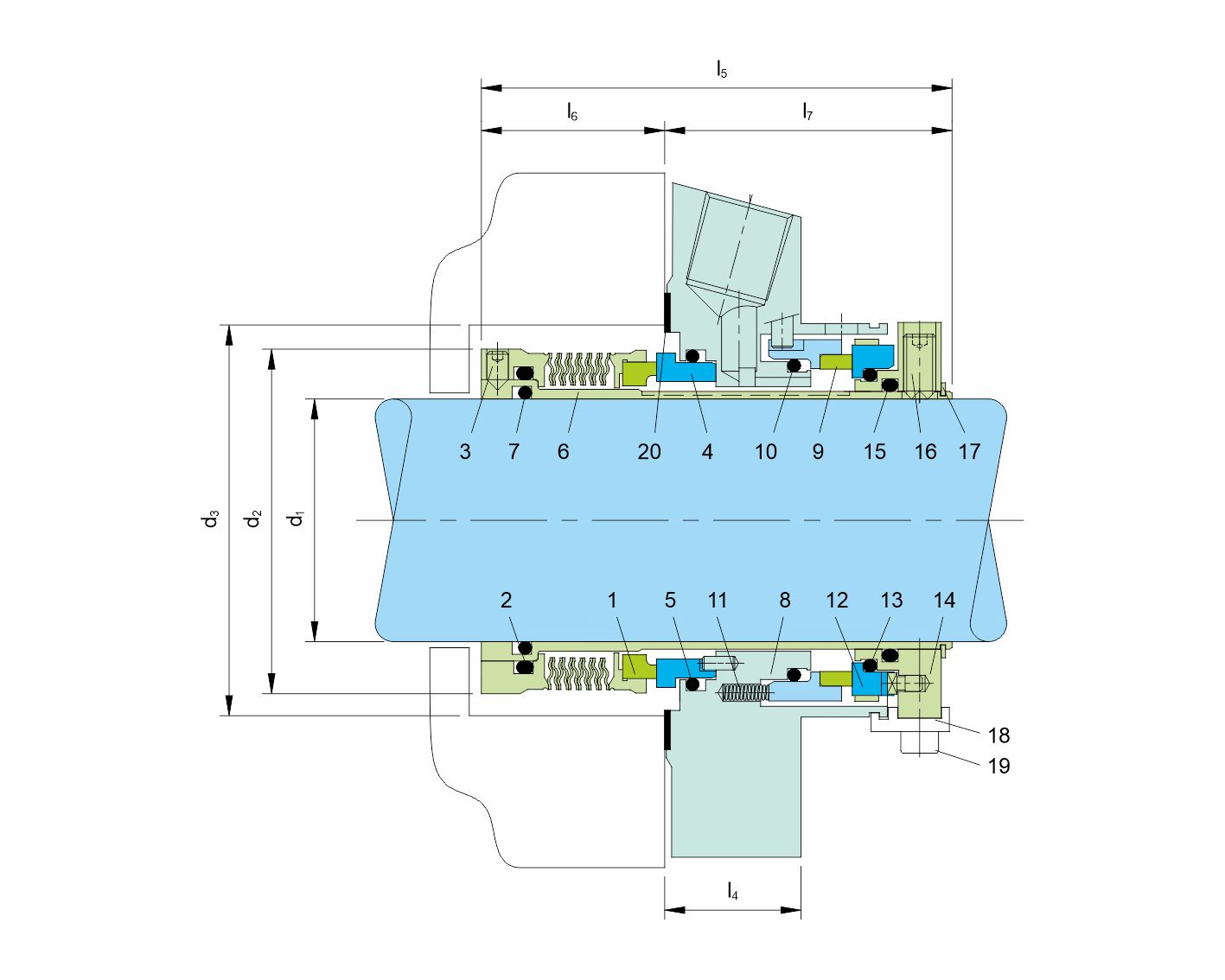

Item No. Description
1 Bellows unit
2, 5, 7,10, 13, 15 O-Ring
3, 16 Set screw
4 Seat
6 Shaft sleeve
8 Cover
9 Seal face
11 Spring
12 Seat
14 Drive collar
17 Retaining ring
18 Assembly fixture
19 Hex socket head screw
20 Gasket
21 Screw Plug
22 Gasket
