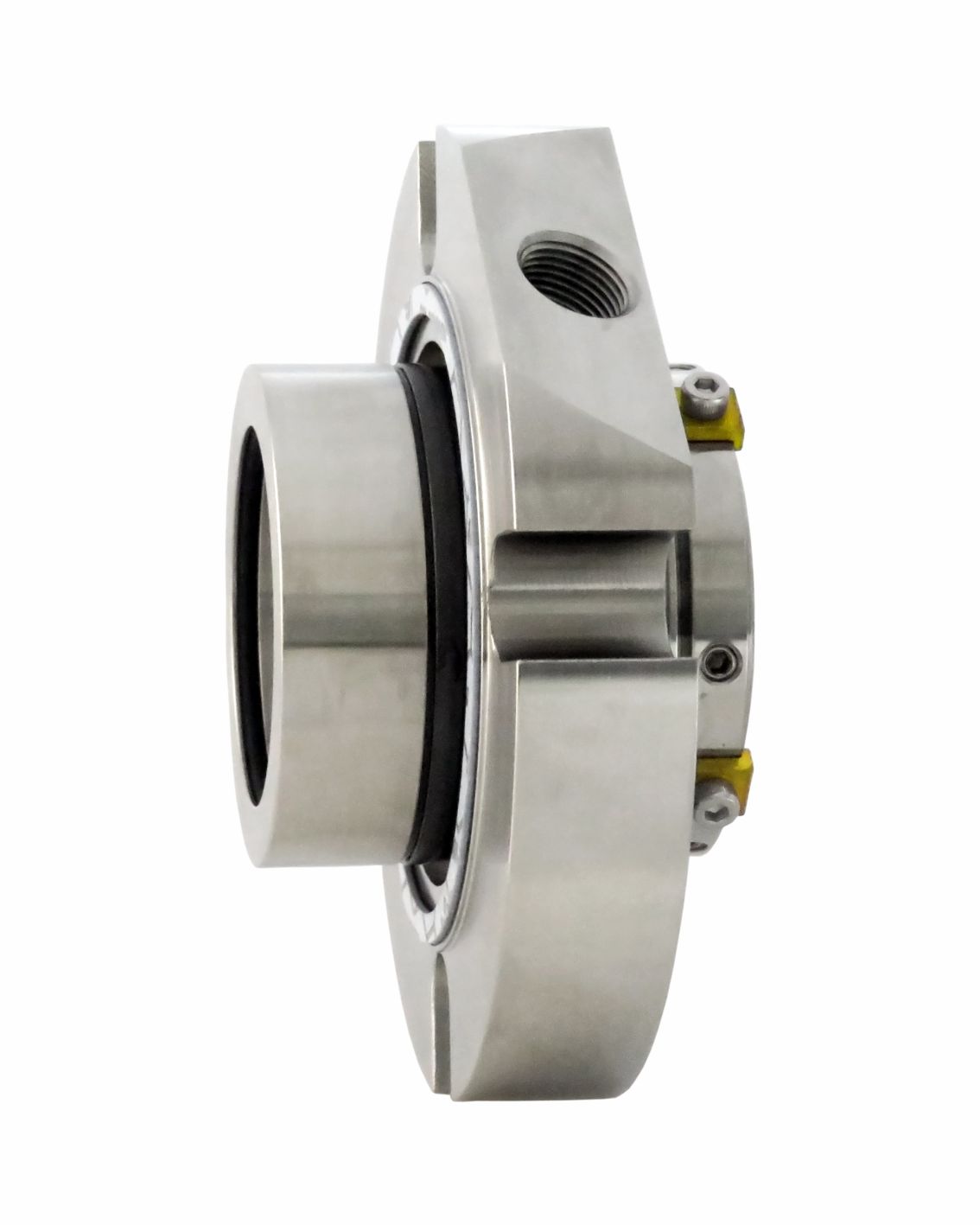

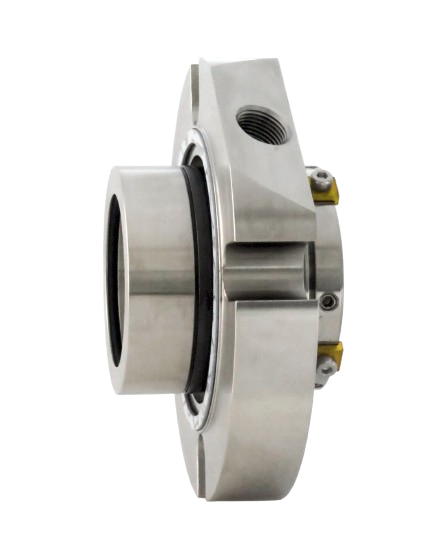

Standard Cartridge Seals

CTX ANSI Single Seals

CE0035 Certification
EC 1935/2004 Certification
CE Certification
Reach
RoHS
RoHS
API Certification
Mechanical Seals

CTX ANSI Single Seals

Product Description

  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Available for standard (CTX-ASPN) and big bore (CTX-ABPN) seal chambers
  • Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, - ABQN) or throttle ring (-ASTN, -ABTN)

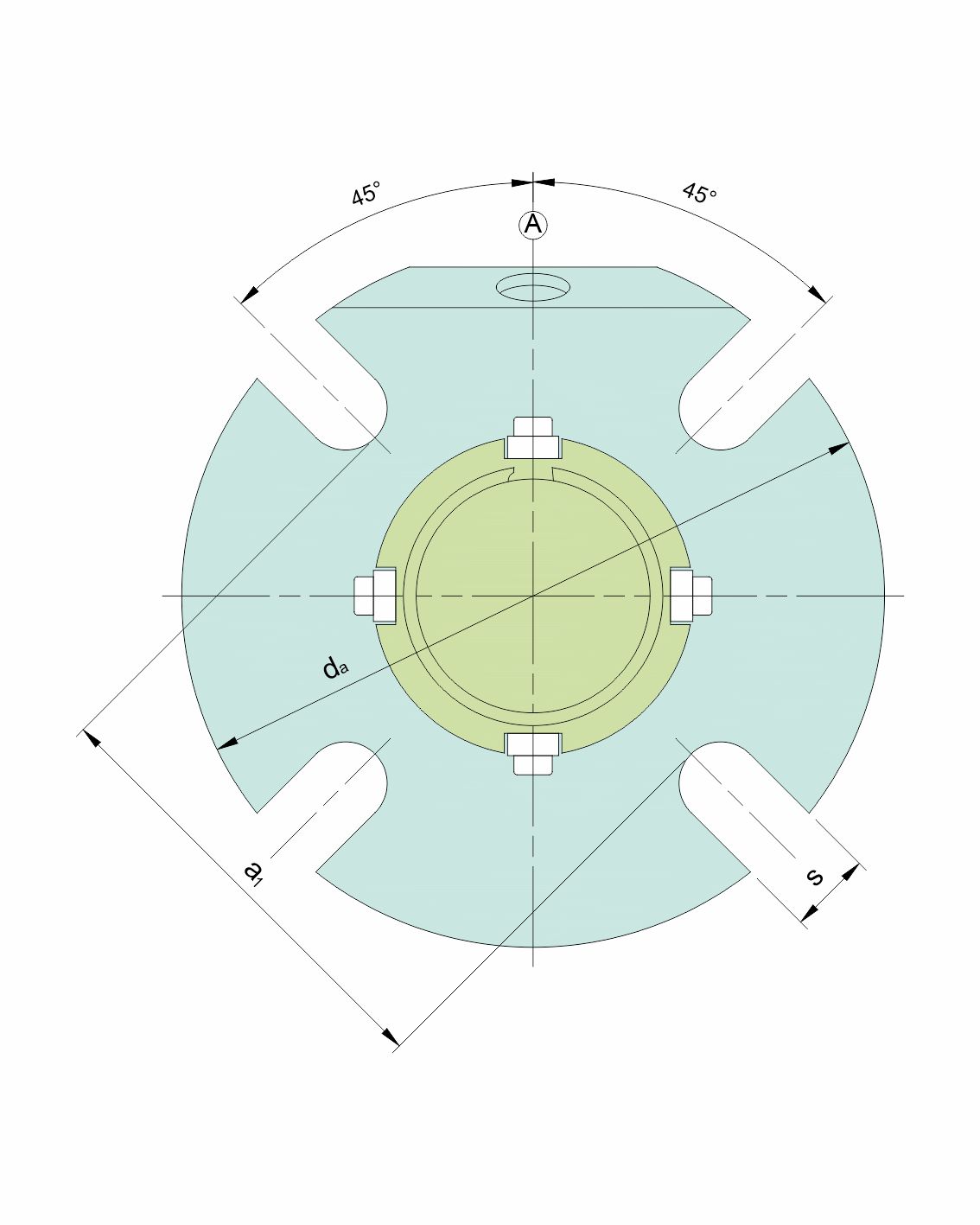

Details

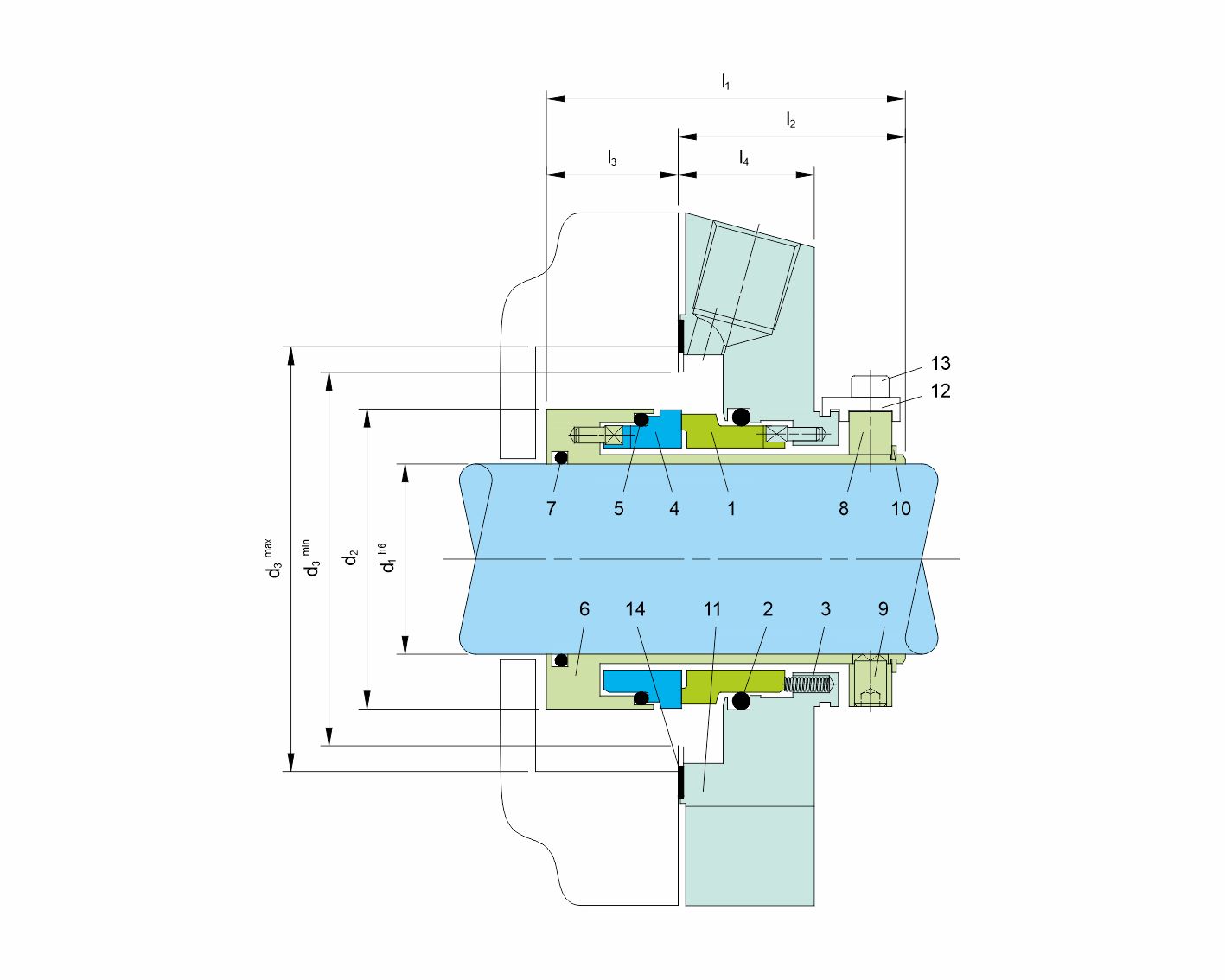

Item No. Description
1 Seal face
2, 5, 7 O-Ring
3 Spring
4 Seat
6 Shaft sleeve
8 Drive collar
9 Set screw
10 Snap ring
11 Cover
12 Assembly fixture (remove after installation)
13 HSH Cap Screw
14 Gasket
15 Lip seal (-QN), throttle ring (-TN)
