Mechanical Seals For Agitators, Mixers, Kneaders & Reactors

U164

CE0035 Certification
EC 1935/2004 Certification
CE Certification
API Certification
Mechanical Seals

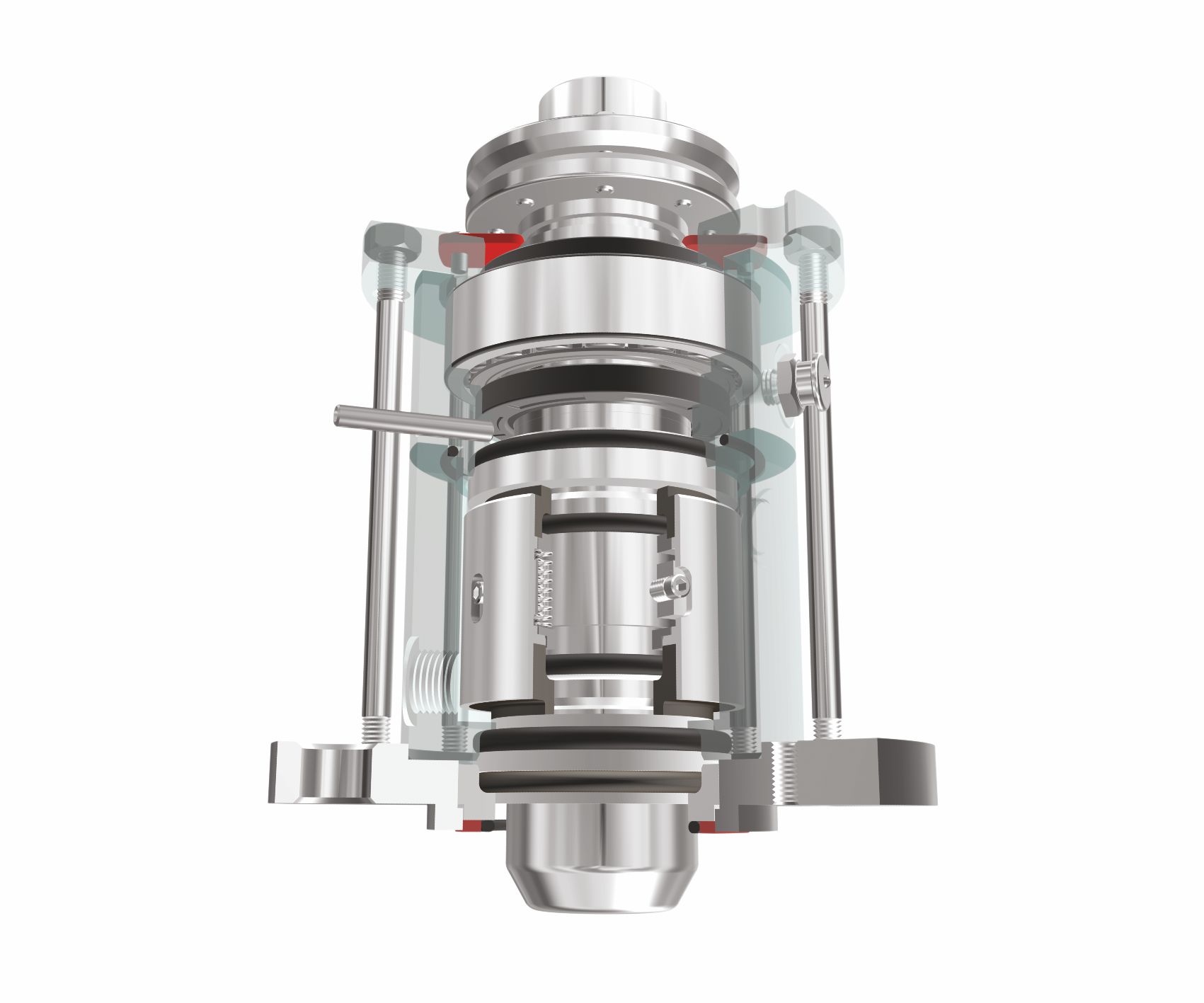

U164

Product Description

  • Single and Dual seal configuration
  • Unbalanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Designed for top entry vessels
  • Rotary unit with multiple springs
  • Construction with Integrated bearing also available
  • For glass-lined vessels, design according to DIN 28138 T2

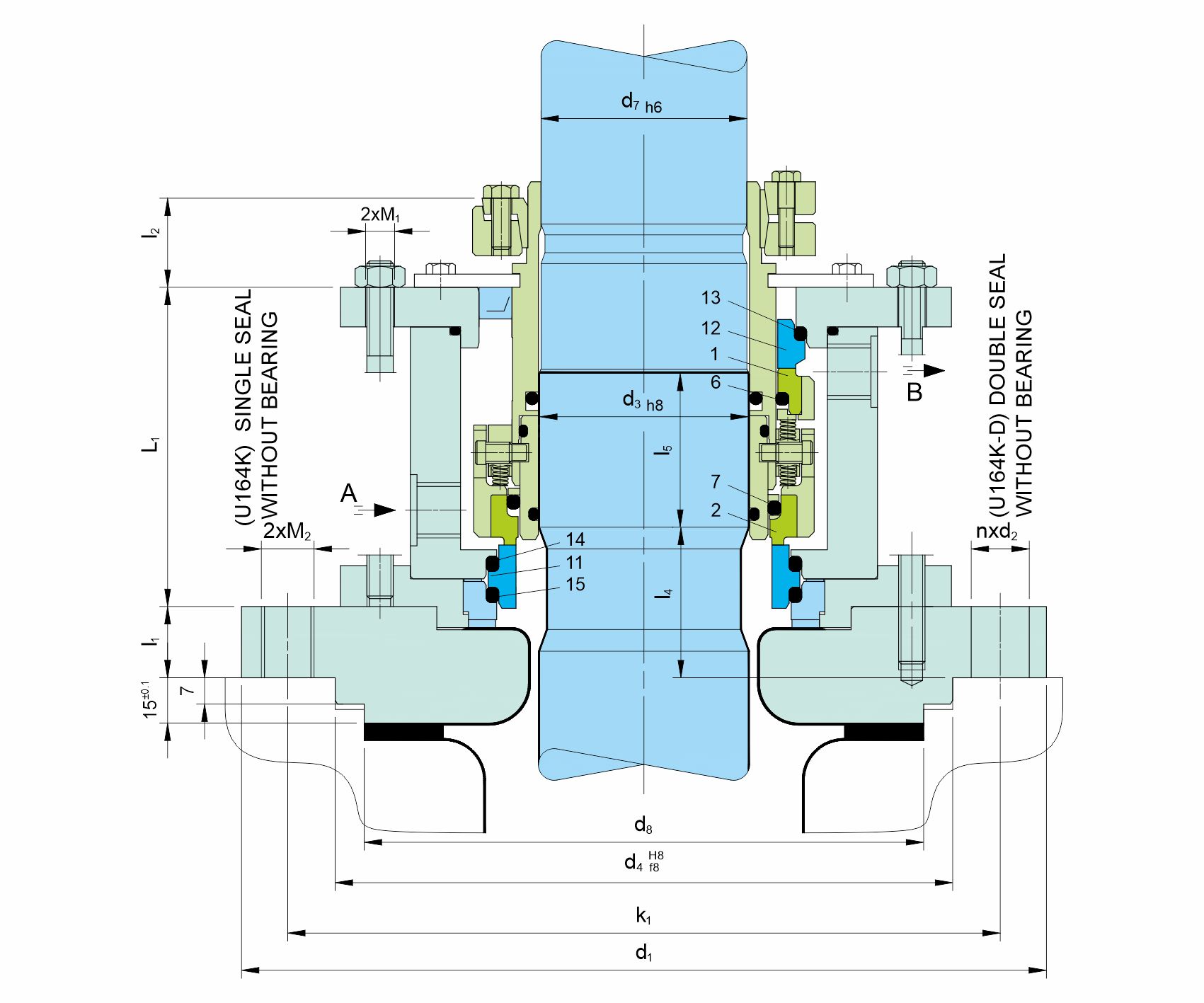

Details
Item No. Description
1 Seal face, atmosphere side
2 Seal face, product side
6, 7, 13, 14, 15 O-Ring
11 Seat, product side
12 Seat, atmosphere side
