API 682 4th Edition
Category 1, 2/3 2NC-CS

GSPH Ta Dual Seal
Category 1, 2/3 2NC-CS

GSPH Ta Dual Seal

API 682 4th Edition Category 1,2&3
Seal Type A (Rotating)
Configuration 2NC-CS (Non Contacting – Containment Seal)

Product Description

  • API 682 Category 1, 2 and 3, Type A, Arrangement 2 seal
  • Dual seal in face-to-back configuration
  • Gas lubricated
  • Independent of direction of rotation (with U-grooves)
  • Cartridge construction
  • Contact free operation, no friction
  • Rotary multiple springs

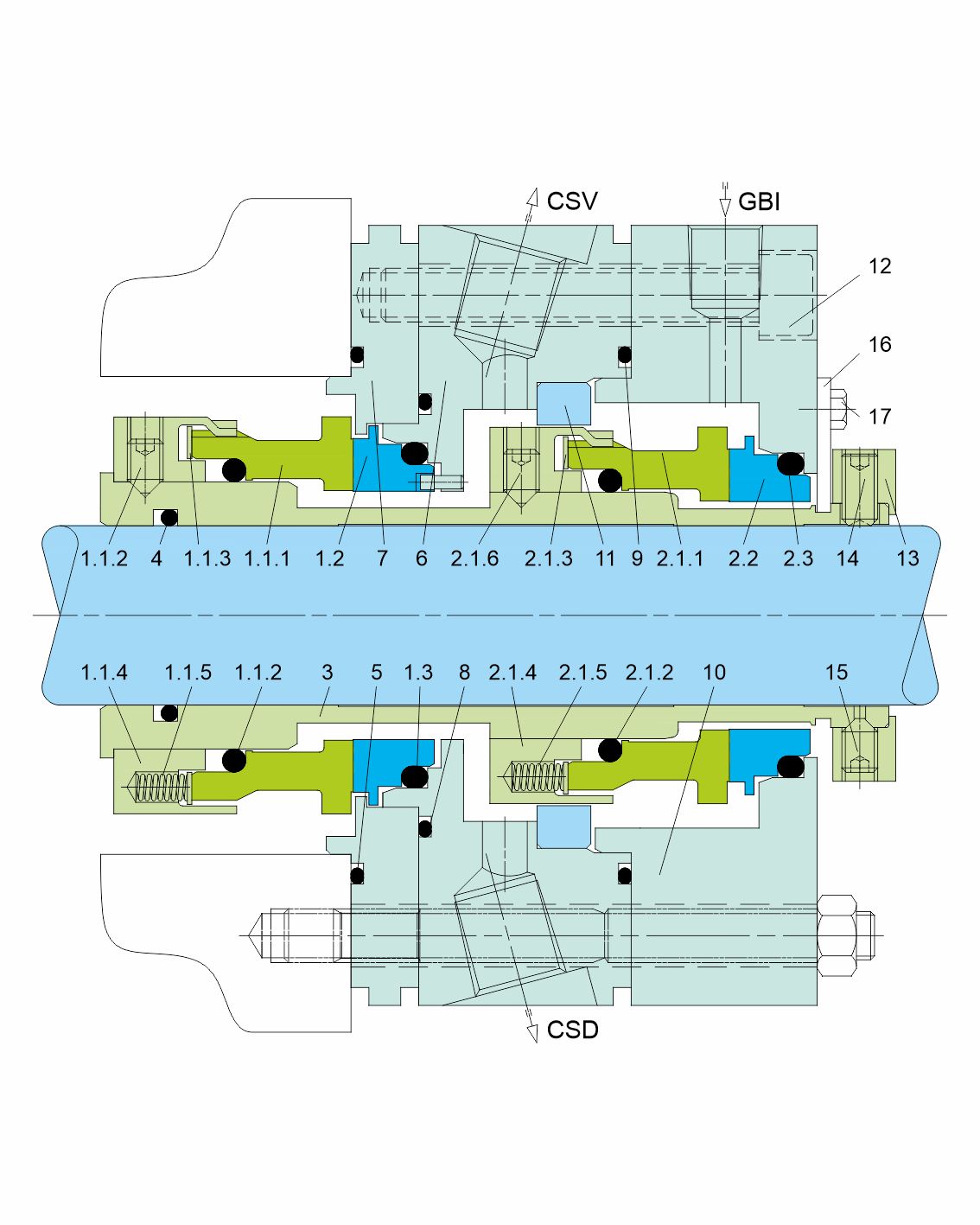

Details
Item No. Description
1.1.1,2.1.1 Seal ring
1.1.2,1.3,2.1.2,2.3,4,5,8,9 O-ring
1.1.3,2.1.3 Thrust ring
1.1.4,2.1.4 Driver
1.1.5,2.1.5 Spring
1.1.6,2.1.6,14,15 Set screw
1.2,2.2 Mating ring
3 Shaft sleeve
6 Intermediate gland
7 Gland
10 Cover
11 Throttle bush
12 HSH cap screw
13 Set ring
16 Assembly plate
17 Hexagon bolt
CSV Containment Seal Vent
CSD Containment Seal Drain
GBI Gas Buffer IN
