API 682 4th Edition
Category 2/3 - 2CW - CW
Category 2/3 - 3CW - FB

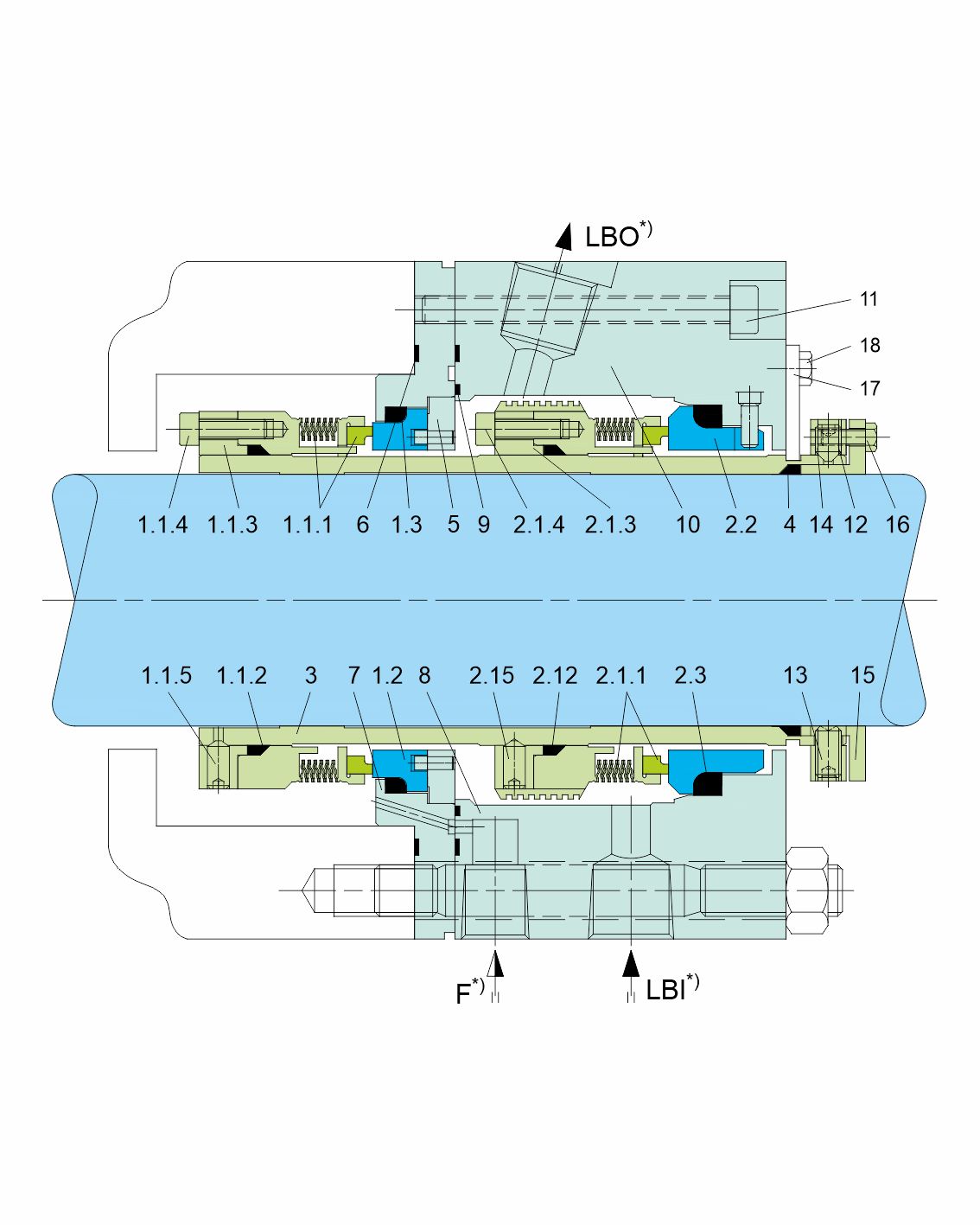

UFLWT800-Ta Dual Seal
Category 2/3 2CW-CW; Category 2/3 3CW-FB

UFLWT800-Ta Dual Seal

API 682 4th Edition Category 2&3
Seal Type C (Rotating)
Configuration 2CW-CW (Contacting Wet – Contacting Wet)
Configuration 3CW-FB (Contacting Wet – Face-to-Back)

Product Description

  • API 682 Category 2 and 3, Type C, Arrangement 2 & 3 seal
  • Dual seal in face-to-back configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • For plain shafts
  • Rotary metal bellows design
  • Shrink fitted seal rings and solid mating rings
Details
Item No. Description
1.1.1,2.1.1 Seal ring with Bellows Unit
1.1.2,1.3,2.1.2,2.3,4 Sealing ring
1.1.3 Thrust ring
1.1.4,2.1.4,11 HSH cap screw
1.1.5,2.1.5,13,14 Set screw
1.2,2.2 Mating ring
2.1.3 Thrust ring with pumping ring
3 Shaft sleeve
5 Adapter
6,8,9 Gasket
7 Intermediate gland
10 Gland
12 Set ring
15 Pusher ring
16,18 Hexagon bolt
17 Setting plate
F Flush
LBI Liquid Buffer / Barrier IN
LBO Liquid Buffer / Barrier OUT
