API 682 4th Edition
Category 2/3 - 1CW - FL

UFL650 Single Seal
Category 2/3 1CW-FL

UFL650 Single Seal

API 682 4th Edition Category 2&3
Seal Type C (Stationary)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)

Product Description

  • API 682 Category 2 and 3, Type C, Arrangement 1 seal
  • Single seal configuration
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal ring and solid mating ring

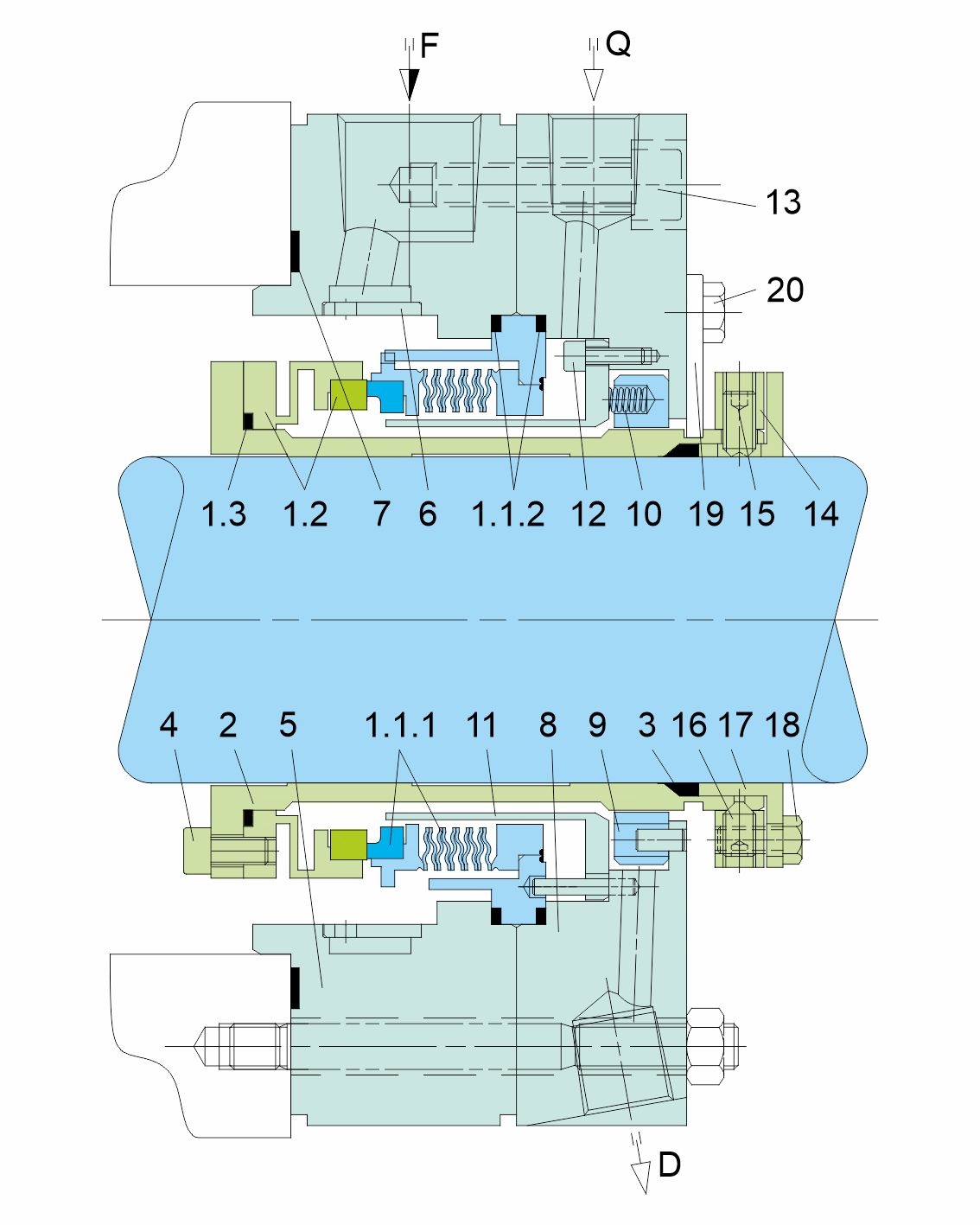

Details
Item No. Description
1.1.1 Seal ring with Bellows Unit
1.1.2,1.3,7 Gasket
1.2 Mating ring
2 Shaft sleeve
3 Sealing ring
4,12,13 HSH cap crew
5 Gland
6 Multi-flow distributor
8 Cover
9 Throttle bushing
10 Spring
11 Quench Baffle
14 Drive collar
15,16 Set screw
17 Pusher ring
18,20 Hexagon bolt
19 Setting plate
F Flush
Q Quench
D Drain
