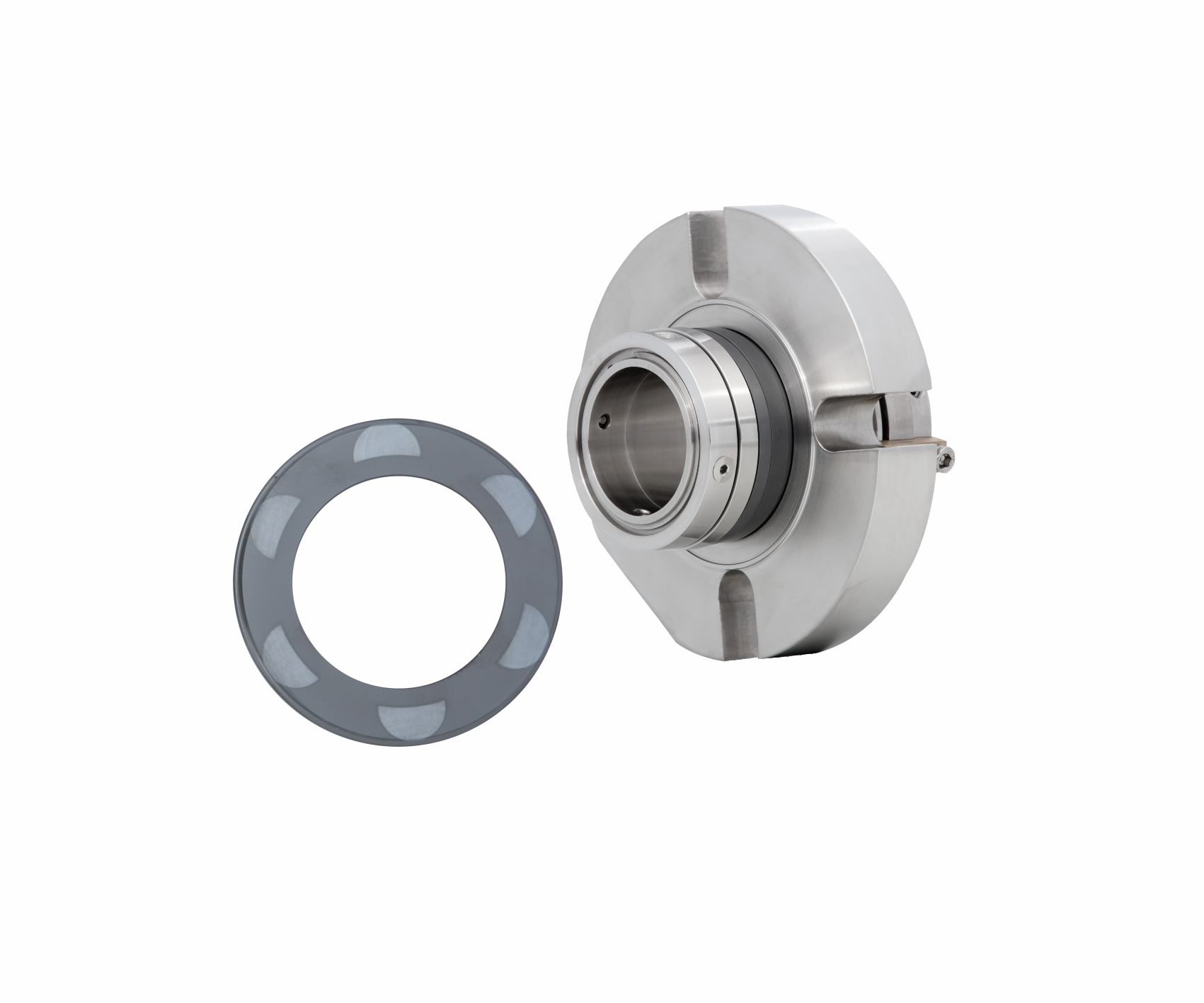

CTX-GSDN
Product Description
- Dual seal configuration
- Balanced design
- Cartridge construction
- Stationary design with multiple springs
- Seat design is rotary
- Designed to remain in closed position in the event of buffer pressure failure
- Can accommodate reverse pressure
- Gas-lubricated design
- Gas grooves design is available in Vgrooves and U-grooves (independent of direction of rotation)

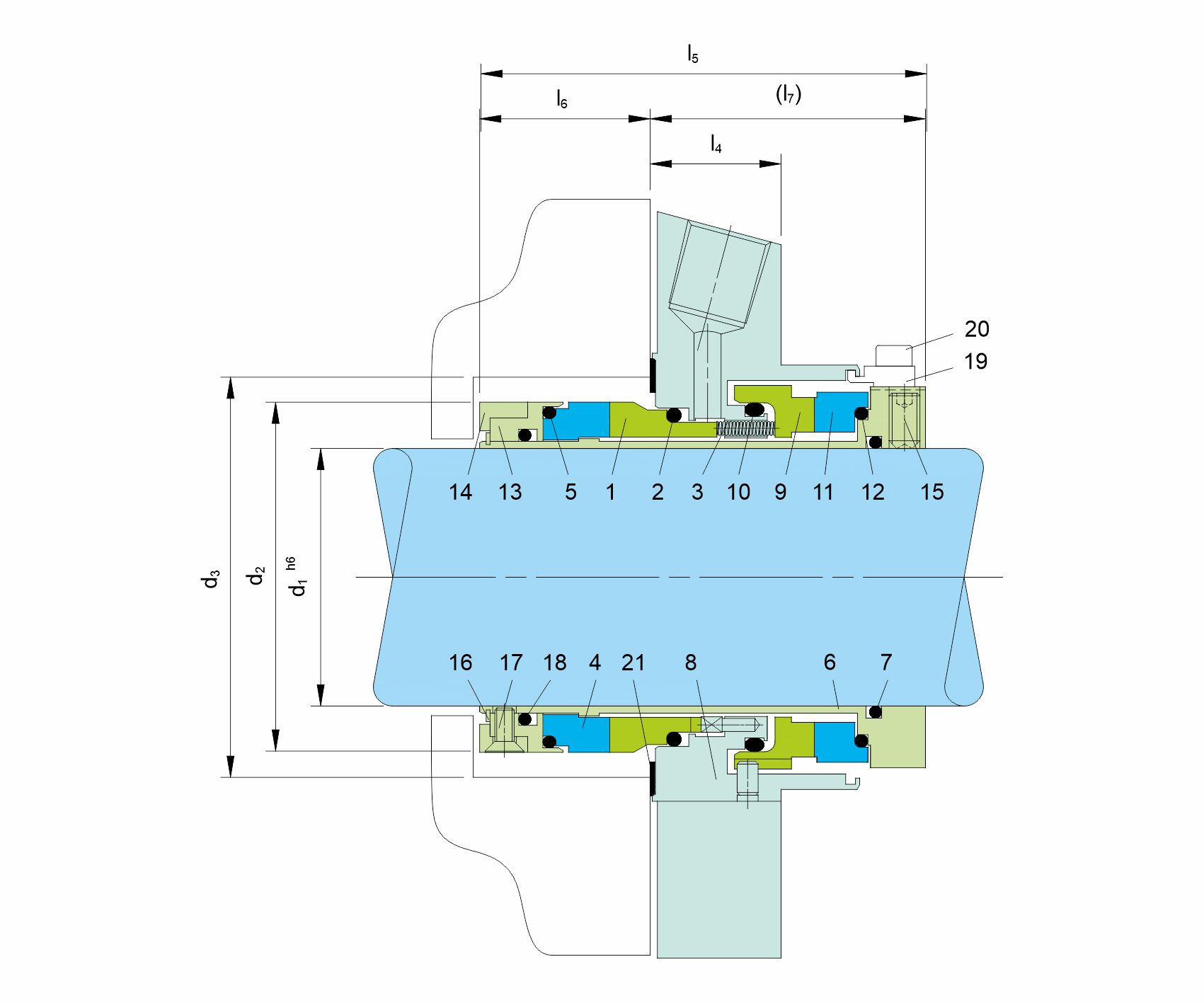

| Details | |
|---|---|
| Item No. | Description |
| 1,9 | Seal face |
| 2,5,7,10,12,18 | O-ring |
| 3 | Spring |
| 4,11 | Seat |
| 6 | Shaft sleeve |
| 8 | Cover |
| 13 | Adapter |
| 14 | Ring |
| 15 | Set screw |
| 16 | Retaining ring |
| 17 | Counter-sunk socket screw |
| 19 | Assembly fixture |
| 20 | HSH Cap Screw |
| 21 | Gasket |
