Mechanical Seals

MTX Single Seals

Product Description

  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Metal bellows design

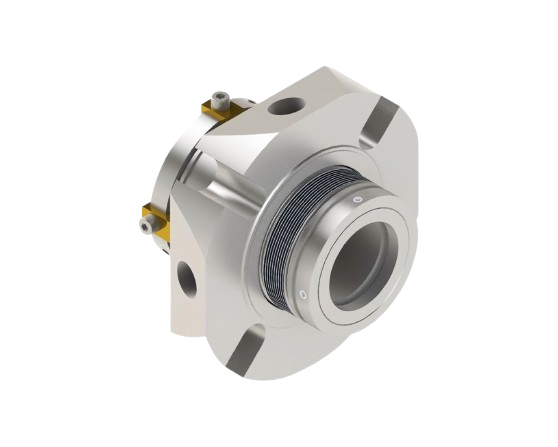

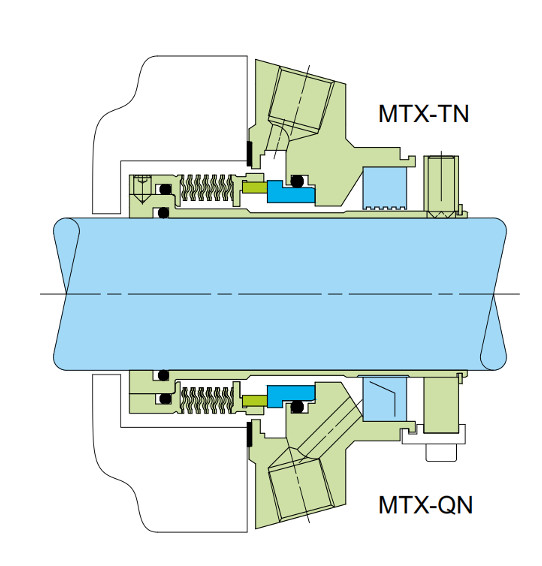

  • Single seal with quench and lip seal
    (-QN) or throttle ring (-TN)
  • Connections for flush and quench available

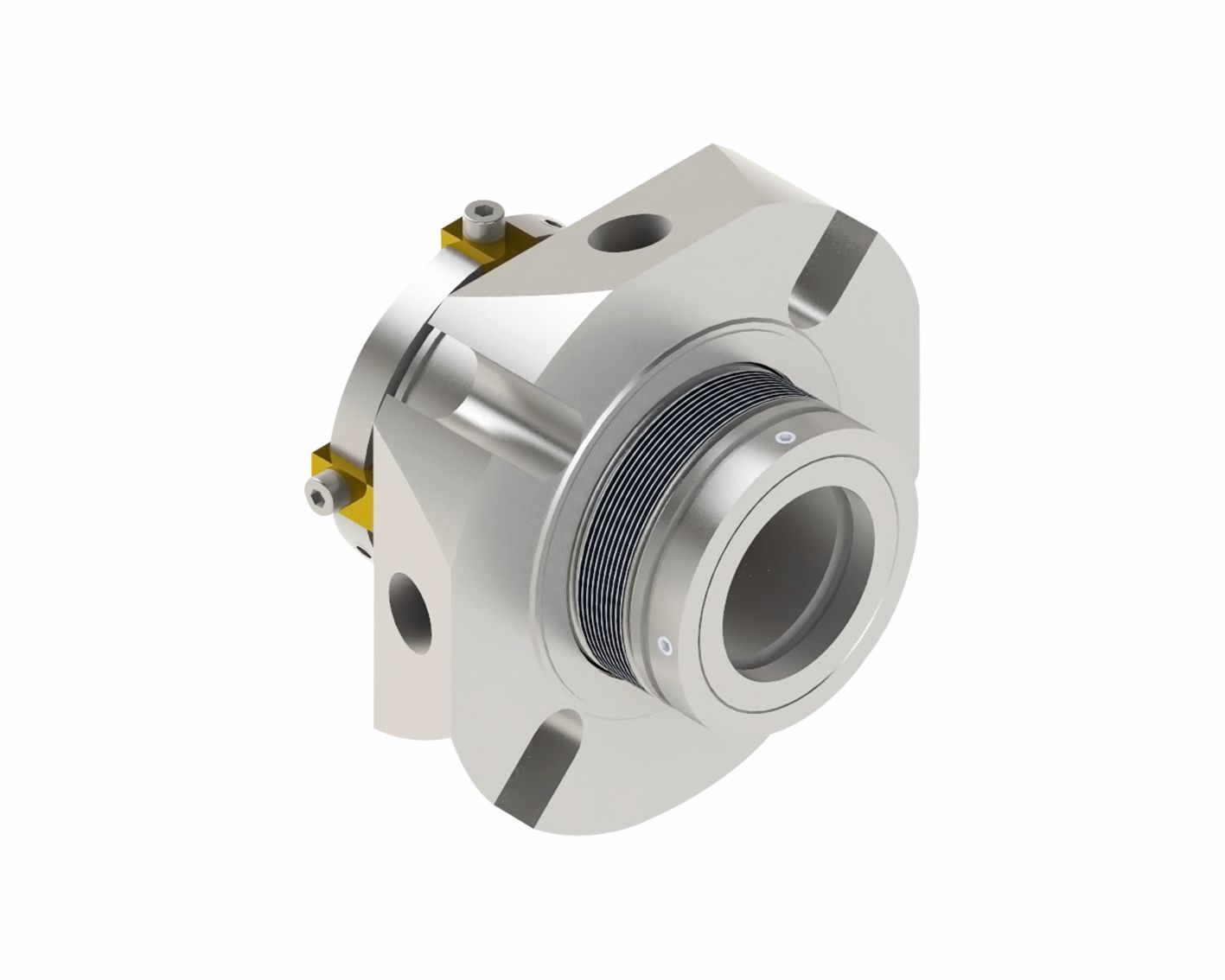

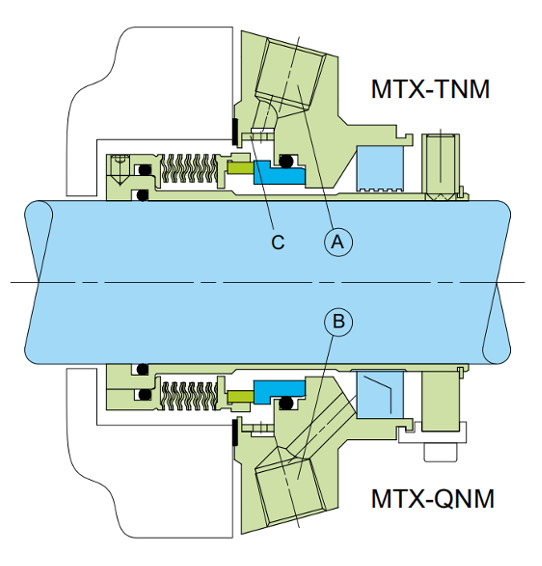

  • Multipoint injection ring design for (-QNM, -TNM)
Details

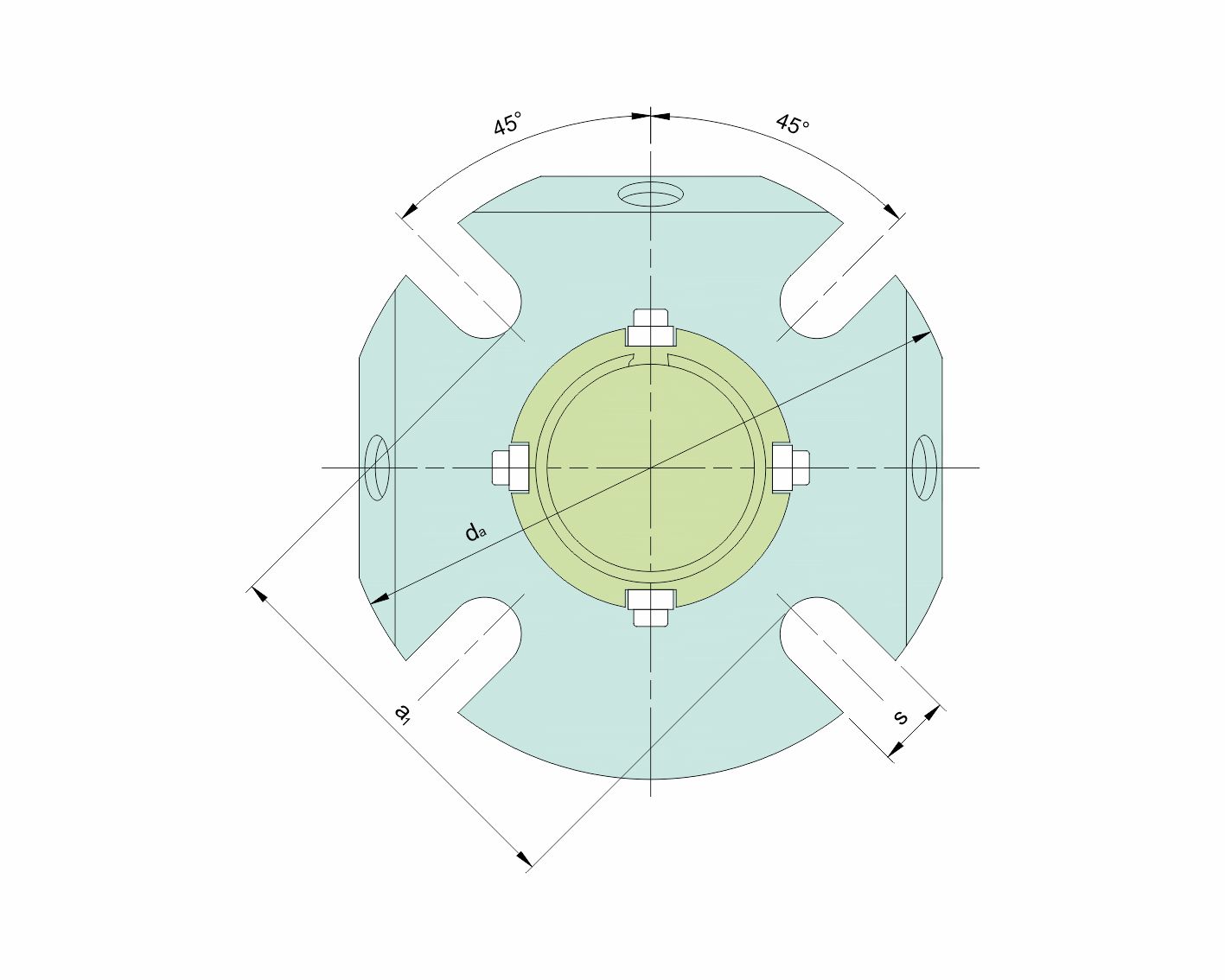

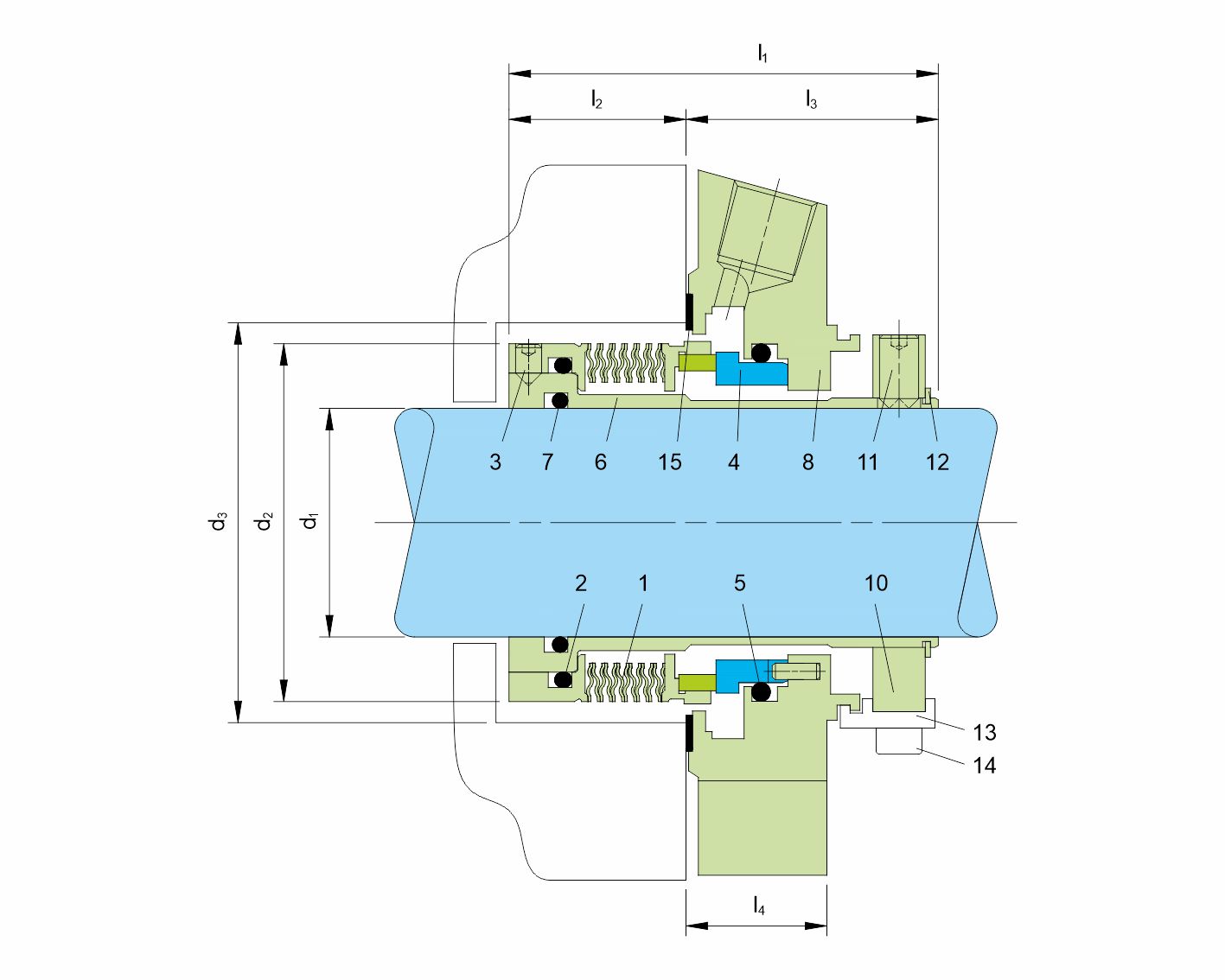

Item No. Description
1 Bellows unit
2, 5, 7 O-Ring
3, 11 Set screw
4 Seat
6 Shaft sleeve
8 Cover
9 Lip seal (-QN) or throttle ring (-TN)
10 Drive collar
12 Retaining ring
13 Assembly fixture
14 HSH Cap Screw
15 Gasket
