Mechanical Seals

BGSR-Ta Dual Seal

API 682 4th Edition Category 2/3
Seal Type A (Stationary)
Configuration 3NC-FB (Non Contacting – Face-to-Back)

Product Description

  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in face-to-back configuration
  • Gas-lubricated
  • Cartridge construction
  • Balanced design
  • Independent of direction of rotation
  • Contact free operation, no friction
  • Stationary springs

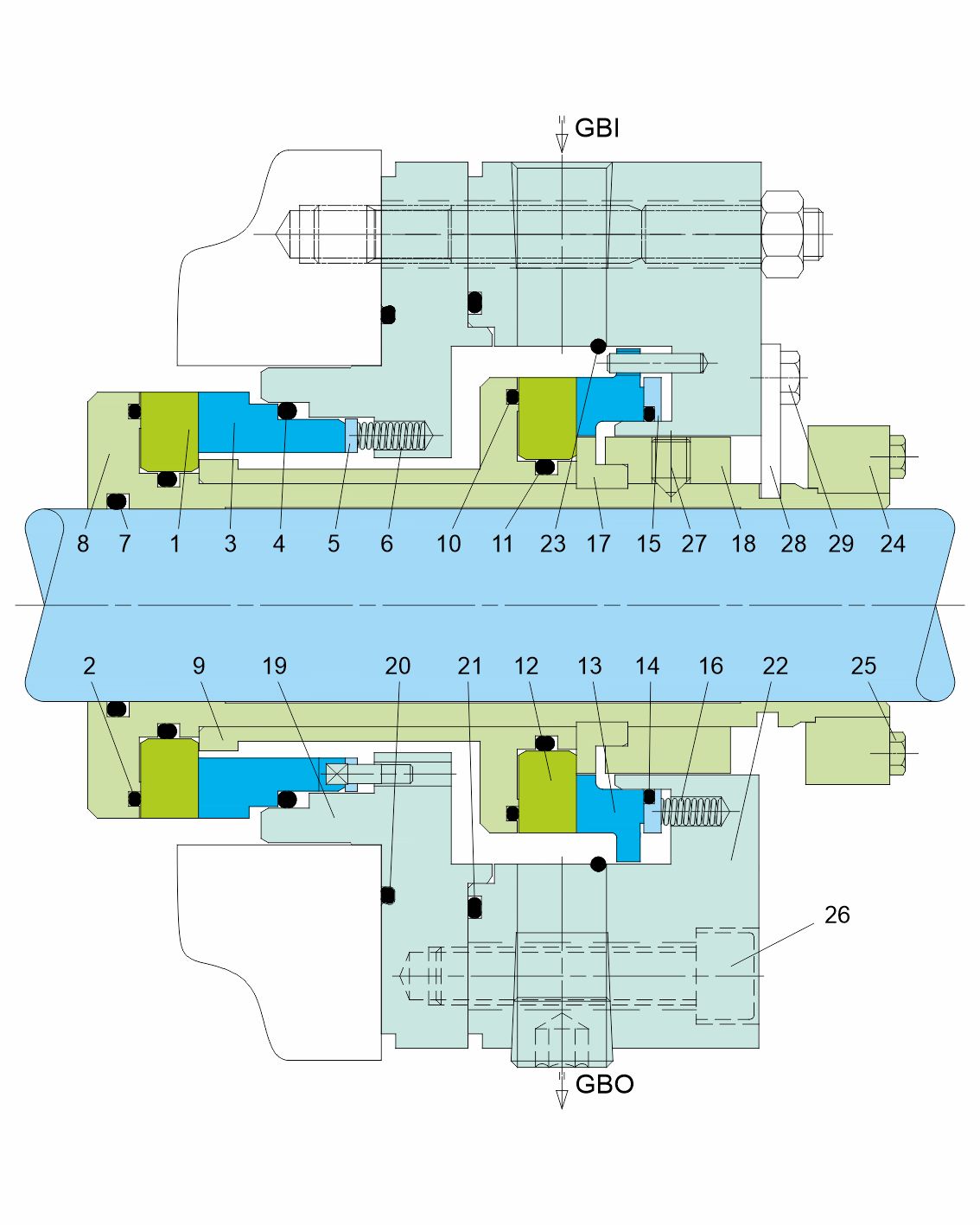

Details
Item No. Description
1,12 Seal ring
2,4,7,10,11,14,20,21 O-ring
3,13 Mating ring
5,15 Thrust ring
6,16 Spring
8 Shaft sleeve
9 Adapter sleeve
17 Support ring
18 Pusher ring
19 Intermediate gland
22 Gland
23 Retaining ring
24 Set ring
25,29 Hexagon bolt
26 HSH cap screw
27 Set screw
28 Assembly plate
GBI Gas Barrier IN
GBO Gas Barrier OUT
