API 682 4th Edition
Category 2/3 - 1CW - FL

UFL850 Single Seal
Category 2/3 1CW-FL

UFL850 Single Seal

API 682 4th Edition Category 2&3
Seal Type B (Rotating)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)

Product Description

  • API 682 Category 2 and 3, Type B, Arrangement 1 seal
  • Single seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge Construction
  • For plain shafts
  • Rotary metal bellows design
  • Shrink fitted seal ring and solid stationary ring
Details

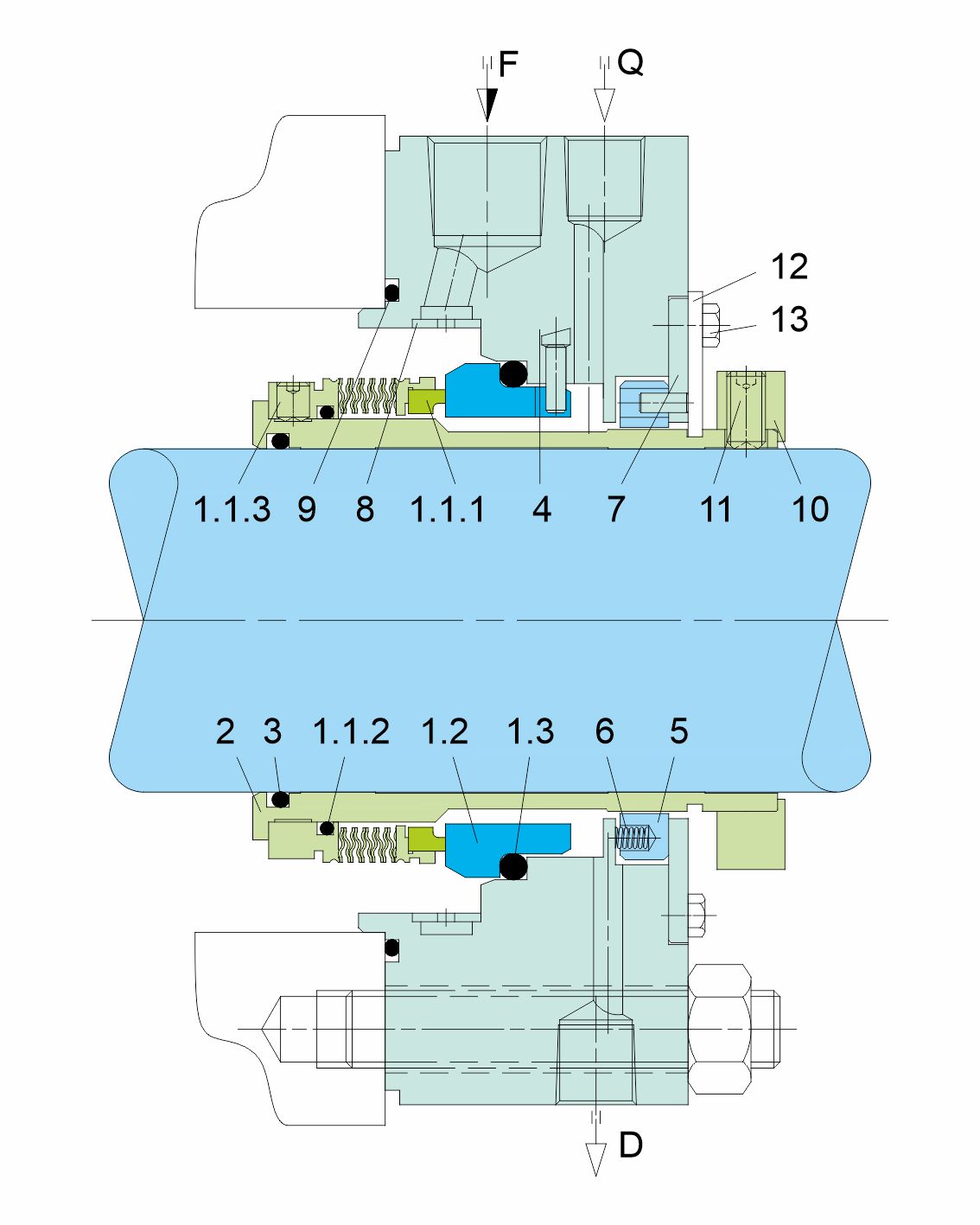

Item No. Description
1.1.1 Seal Ring with Bellows Unit
1.1.2,1.3,3,9 O-ring
1.1.3,11 Set screw
1.2 Mating ring
2 Shaft sleeve
4 Gland
5 Throttle bushing
6 Spring
7 Washer
8 Multi-flow distributor
10 Set ring
12 Setting plate
13 Hexagon bolt
F Flush
Q Quench
D Drain
